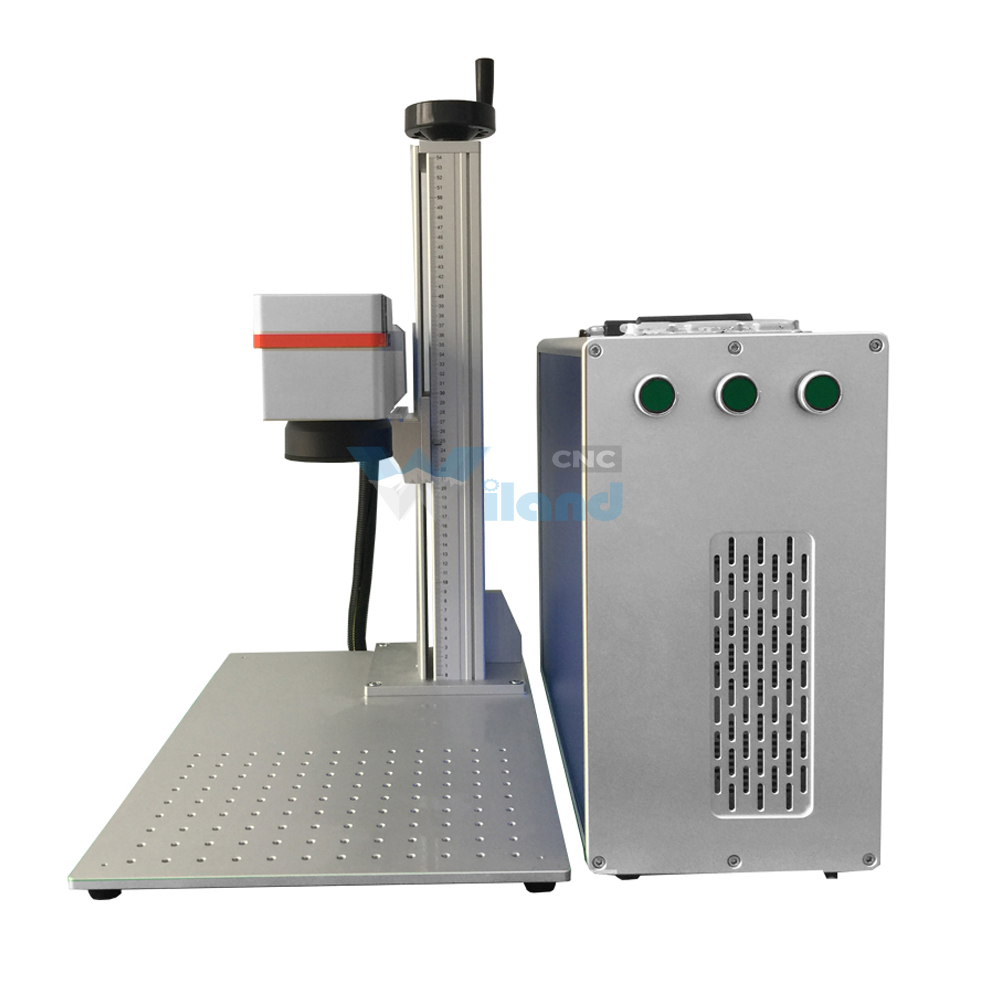

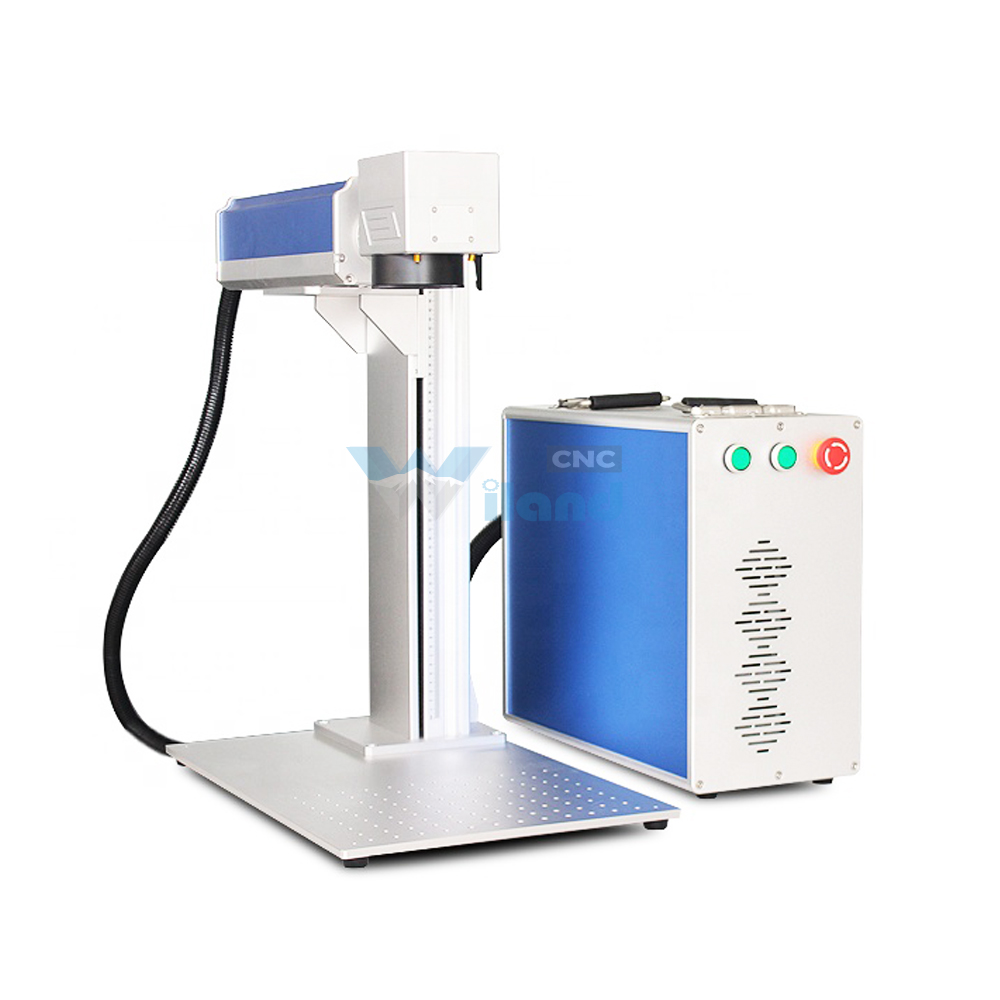

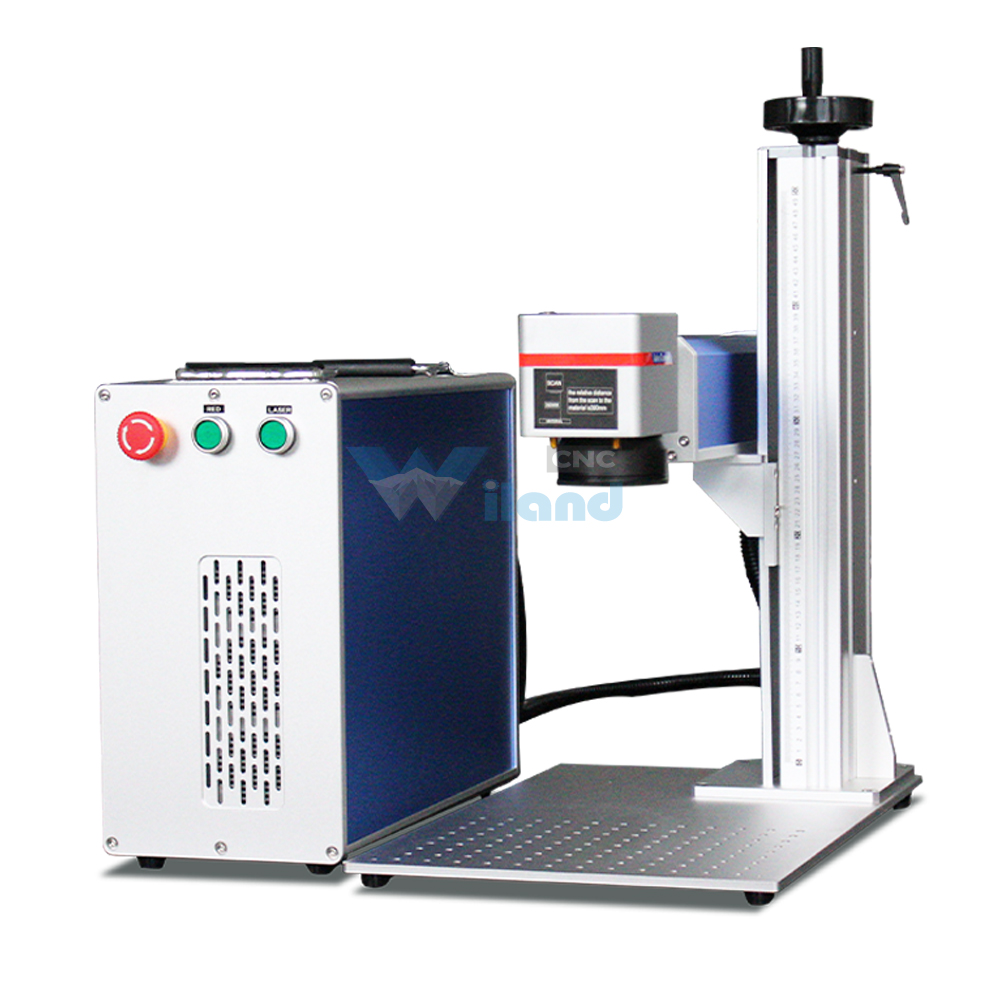

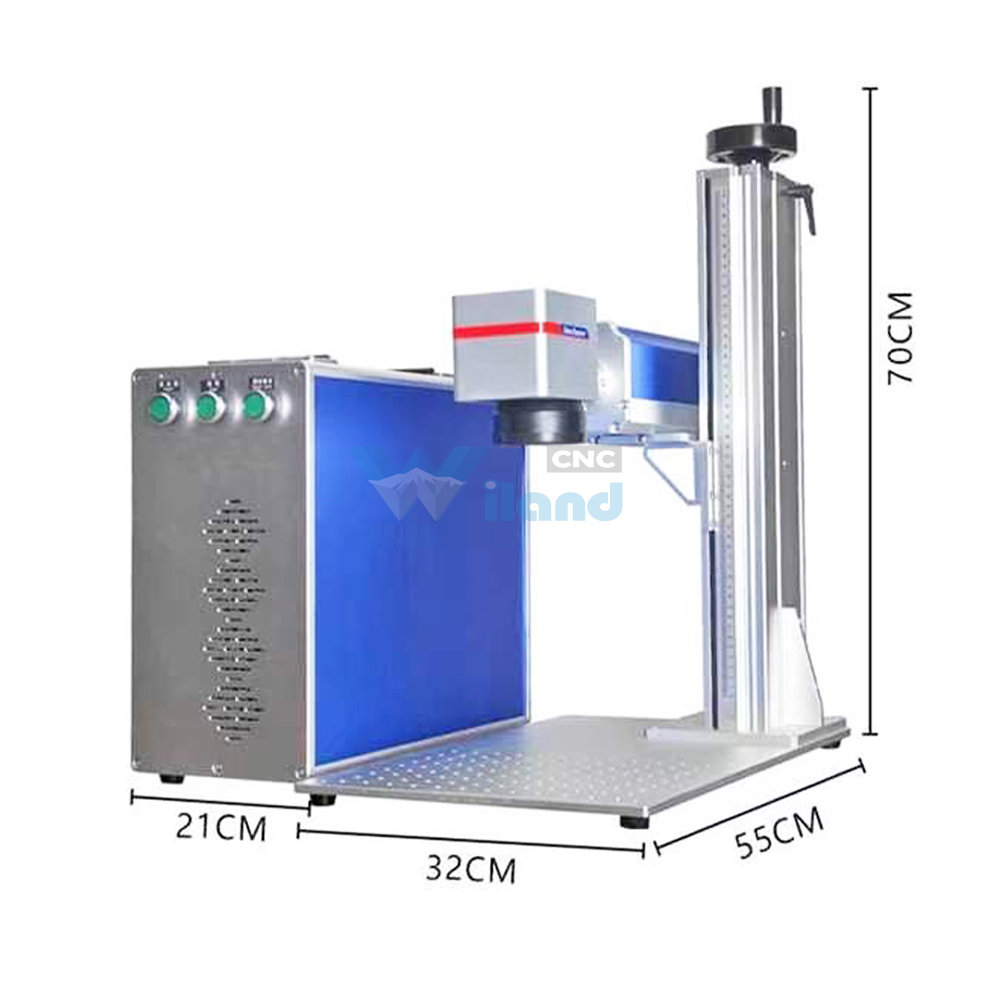

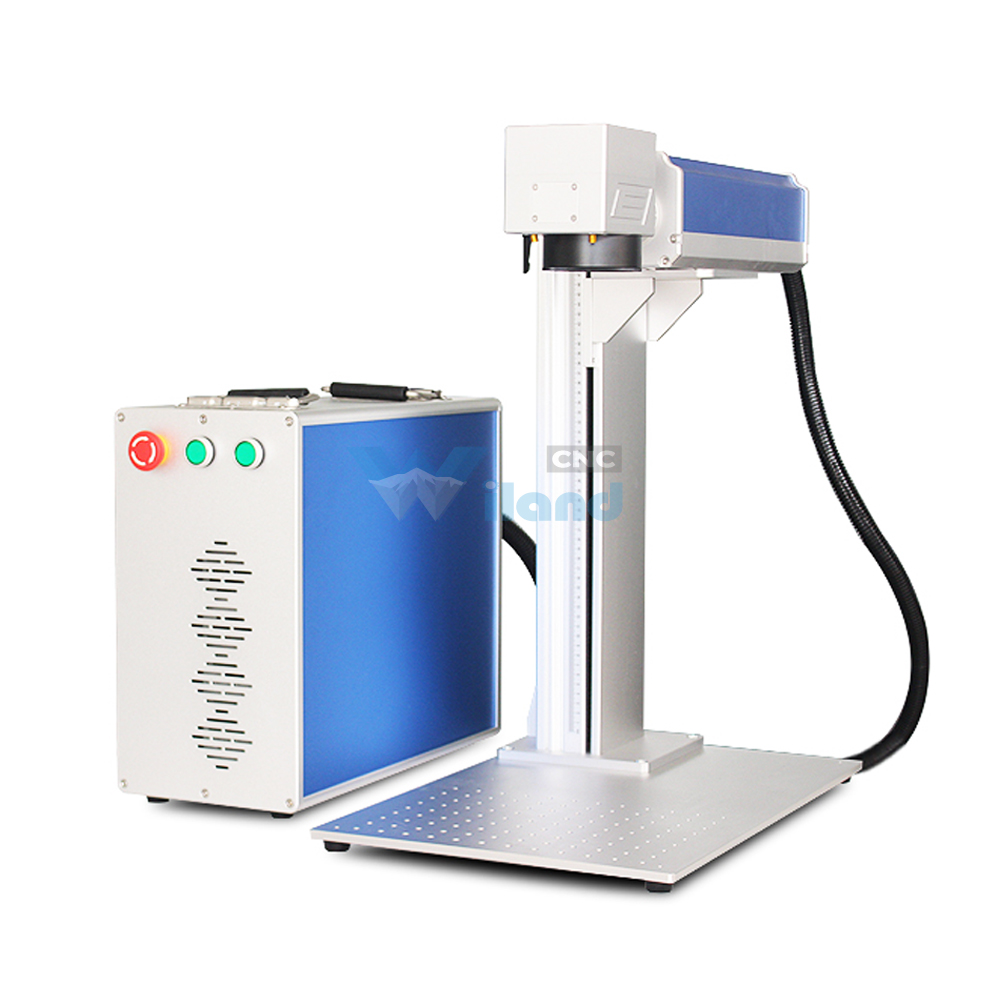

Model: Wiland-SP
Power: 20W/30W/50W/60W/70W/100W
Laser Source: Raycus/MAX/JPT MOPA
Mainboard : Original BJJCZ
Software: EZCAD
Laser Head: Sino Galvo
CONTACT
Main Features
1.Fast speed , high stability , laser mode ;
2.Long life , the theoretical working time is 100,000 hours ;
3.High photoelectric conversion efficiency ,low power consumption;
4.Simple operating system , flexible and convenient typesetting , compatible with AUTOCAD , CORELDRAW , PHOTOSHOP and other software output files ;
5.Chinese and English characters , numbers , bar codes , qr codes , graphics is available , support PLT , DXF ,AI,BMP and other file formats , SHX , TTF font library can be direct used ;
6.The system can automatically encode and print the serial number,batch number , date and so on
Application Material
Suitable for all metal materials , such as common metals ( iron , copper , etc.),rare metals(gold , silver , platinum , titanium ,etc.),metal oxides (alumina ,zirconia ,etc.), special surface treatment (electroplating ,etc.),and is also suitable for various non-metallic materials , such as ABS ,ink , nylon , PVC ,epoxy resin and so on .
Technical Parameters
Laser Source | Fiber laser Raycus/MAX/JPT |
Laser Power | 20W/30W/50W/60W /100W |
Wave length of laser | 1064nm |
Marking scope | 110*110mm/150*150mm/200*200mm/300*300mm |
Laser Head | High speed sino galvo scanning head |
The minimum focus facula diameter | 20μm |
Minimal character | 0.01mm |
Positioning | Double red dot |
Vertical shaft lifting height | 550mm/700mm |
Control system | Original EzCad controller with USB port( 3 axis) |
Marking depth | 0.01-5mm( depends on different materials) |
Marking line width | 0.01-0.1mm |
Marking speed | ≤8000mm/s |
Laser repetition frequency | 20kHz~80kHz |
Galvanometer | High speed digital galvanometer (SINO-GALVO, SG2206) |
Filed lens | Scanning lens( Wavelength brand, F-THETA) |
Cooling method | Air Cooling |
Power supply | AC 220V/110V, 50/60Hz, single phase |
Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
Process Material | All kinds of metal and part of non-metal materials( opque acrylic/plastic) |
Certificate | CE/FDA |
