Model: Wiland-MI
Power: 20W/30W/50W
Laser Source: MAX
Mainboard : BSL/Original BJJCZ
Software: BSL/EZCAD
Laser Head: Sino Galvo

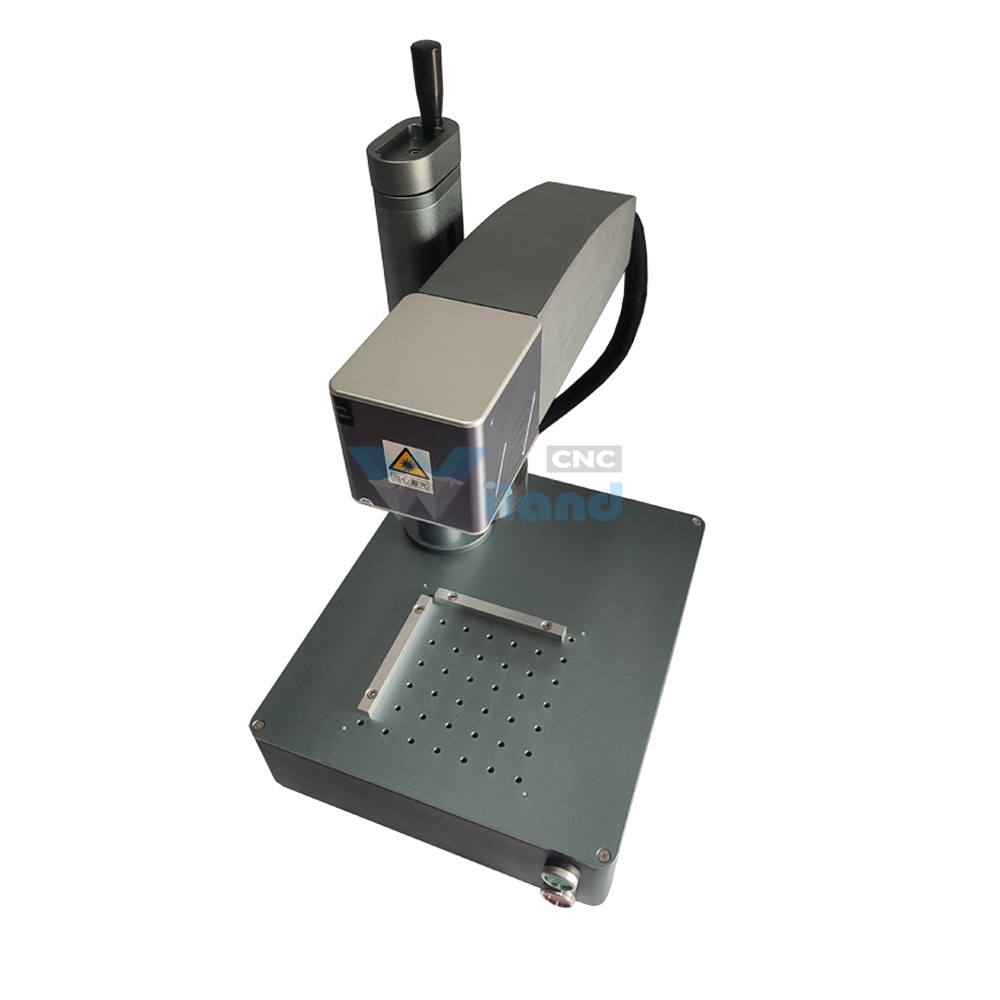

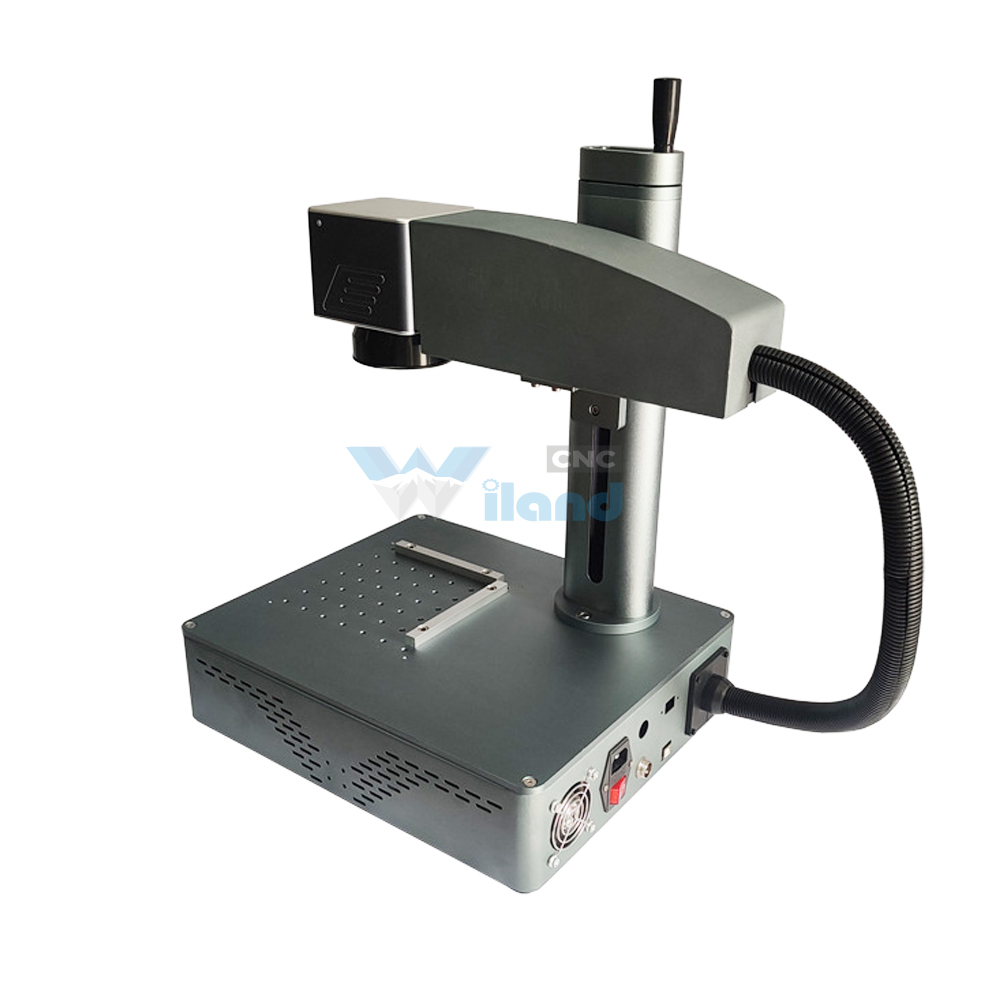

Laser marking machine is a device that marks various materials with a laser beam. The marking effect is the evaporation of the surface material to reveal the deep material, thus carving beautiful patterns, trademarks and words.
Application Material
Suitable for all metal materials , such as common metals ( iron , copper , etc.),rare metals(gold , silver , platinum , titanium ,etc.),metal oxides (alumina ,zirconia ,etc.), special surface treatment (electroplating ,etc.),and is also suitable for various non-metallic materials , such as ABS ,ink , nylon , PVC ,epoxy resin and so on .
Technical Parameters
Items | Mini Fiber Laser Marking Machine | ||||||||
Models | MI-20W | MI-30W | MI-50W | ||||||
Voltage | 220V 50HZ/60HZ | 220V 50HZ/60HZ | 220V 50HZ/60HZ | ||||||
Fiber Source | 20W | 30W | 50W | ||||||
Laser Wavelength | 1064nm | 1064nm | 1064nm | ||||||
Beam Quality(M2) | <1.5 | <1.6 | <1.6 | ||||||
Output Cable Length | 3.0m | 3.0m | 3.0m | ||||||
Average Output Power | ≤20 | ≤30 | ≤50 | ||||||
Pulse Repetition Rate | 30-60kHz | 40-60kHz | 50-100kHz | ||||||
Cooling Method | Forced Air Cooled | ||||||||
Power Adjustment Range | 10%-100% | ||||||||
Operating temperature(℃) | 0℃~40℃ | ||||||||
Air Humidity | ≤80% | ||||||||
Laser Head | Sino-Galvo | ||||||||
Controller | BSL/BJJCZ | ||||||||
Main Board | BSL/BJJCZ | ||||||||
Marking Speed | 10000mm/s | ||||||||
Cutting Materials Thickness | ≤0.3mm | ≤0.5mm | ≤1mm |
