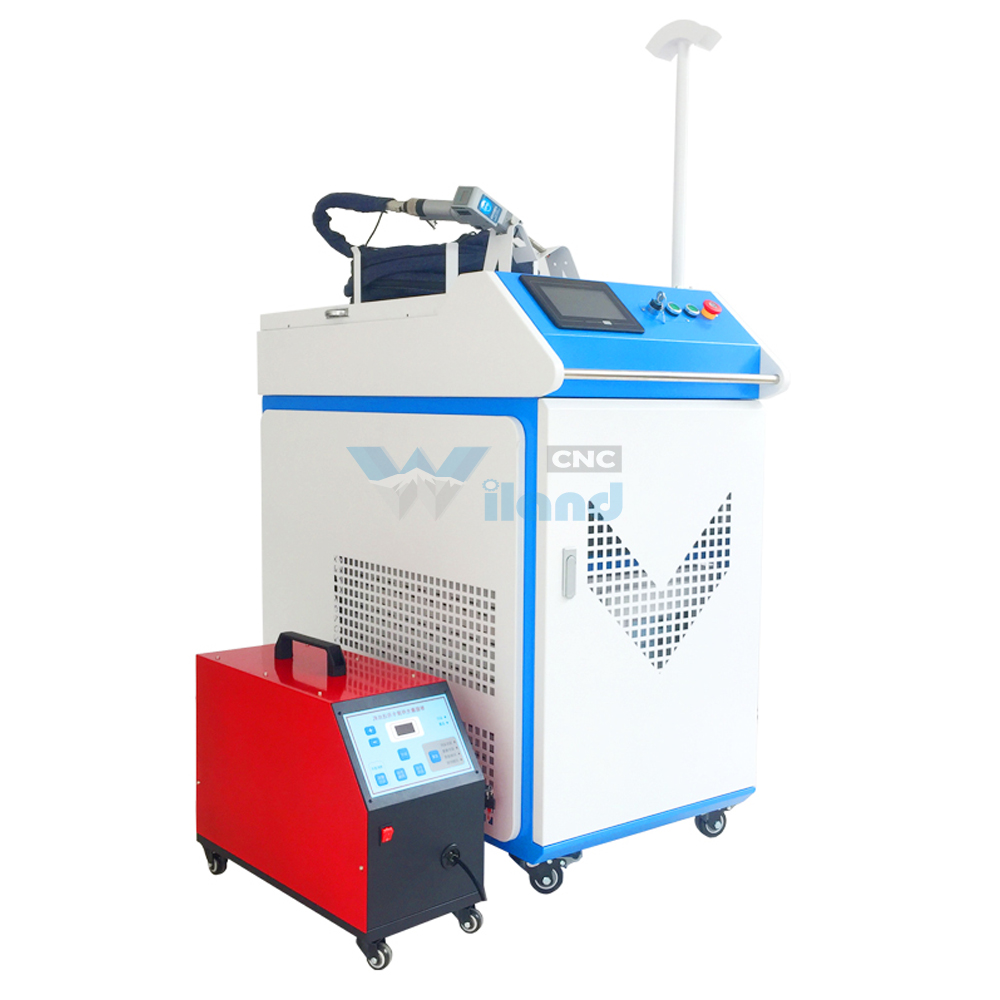

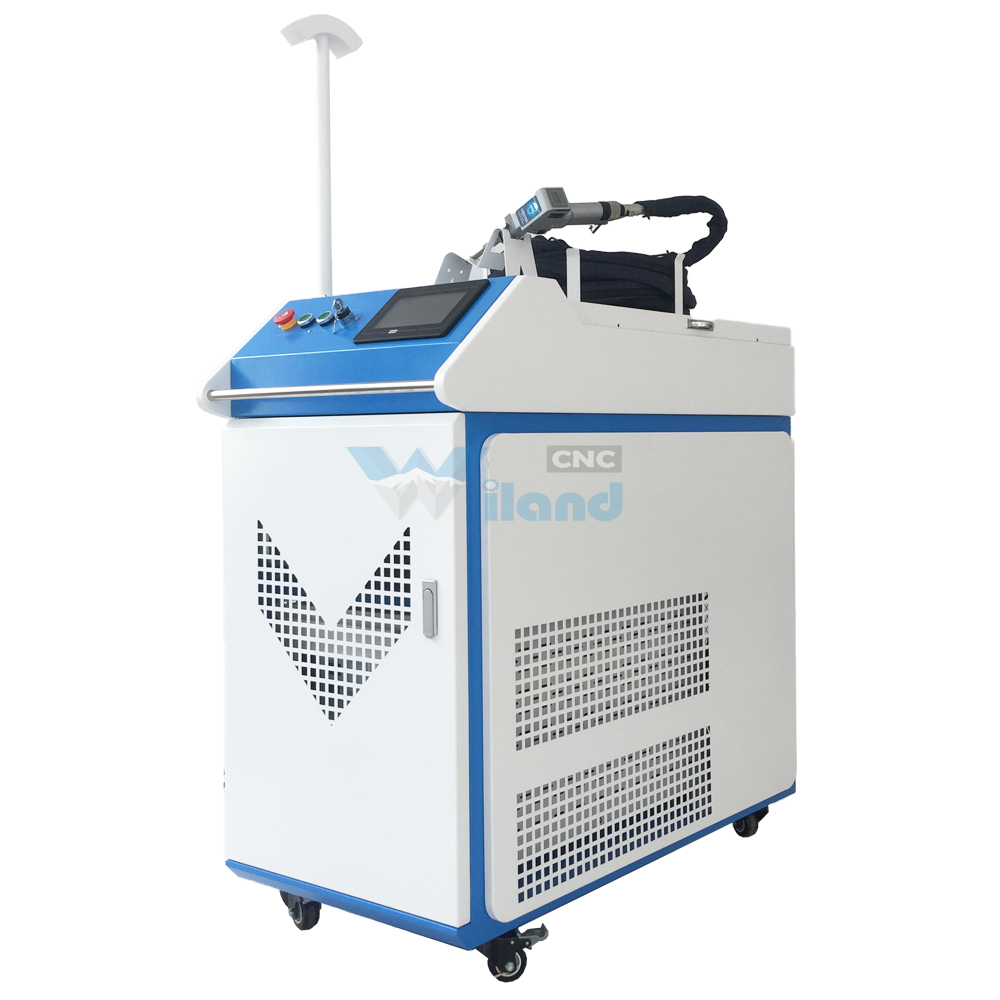

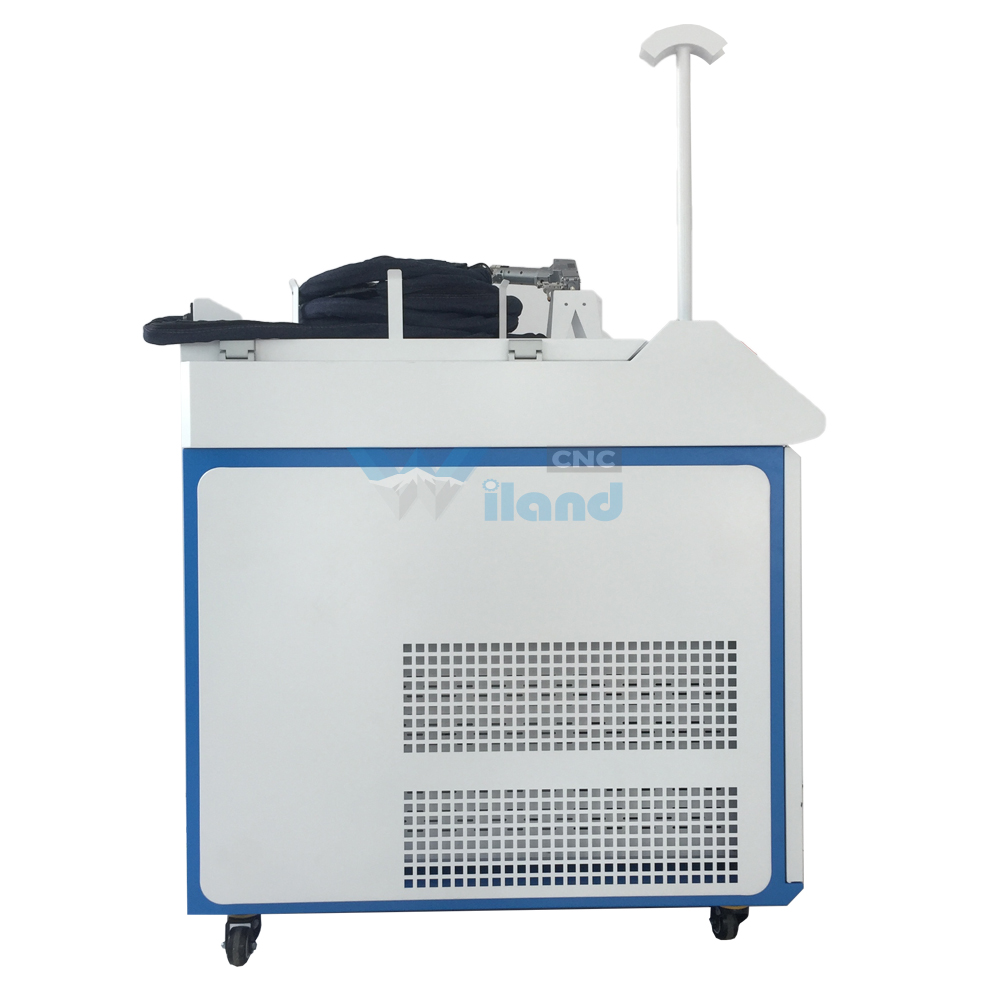

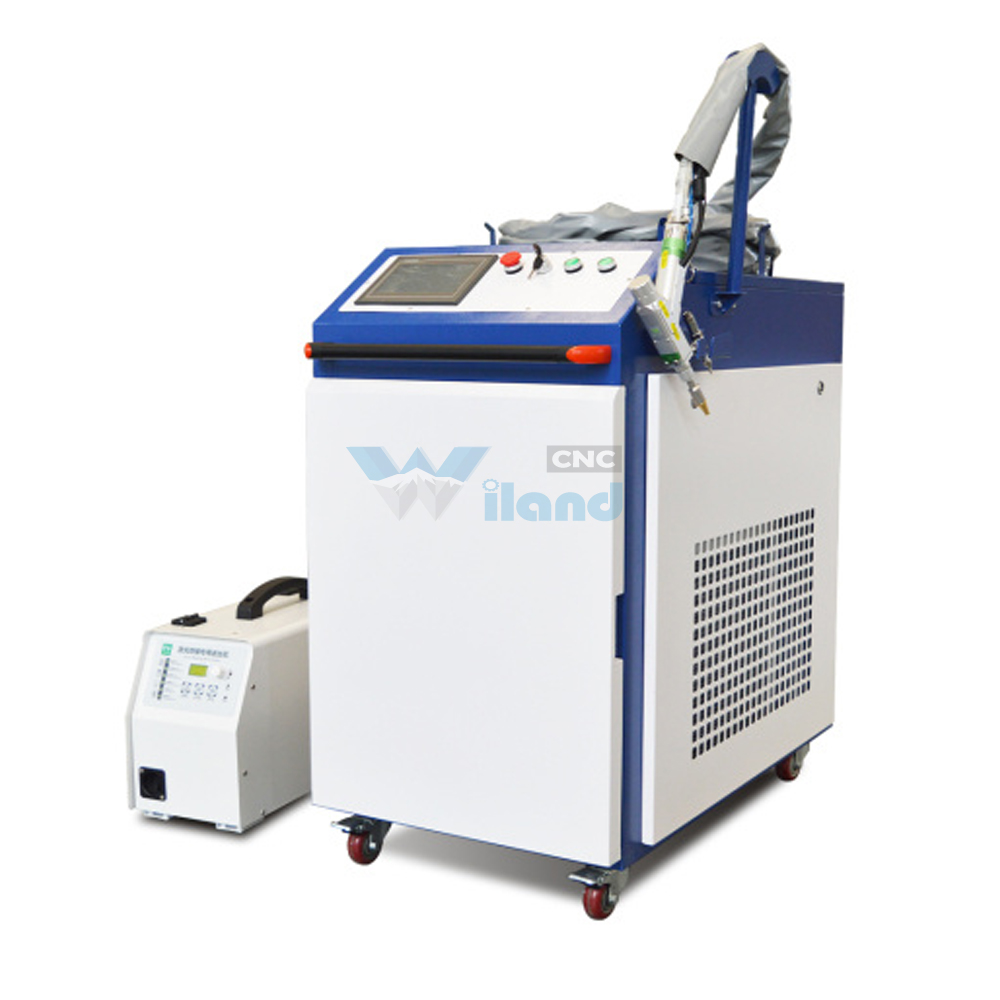

4 In 1 Laser Welding Cleaning Machine

Model: WLD-HW1

Power: 1000W/1500W/2000W/3000W

Laser Source: Raycus/MAX/JPT

Welding Head: Relfar/Gefasst/Raytools

Welding System: 4 In 1

Chiller: Hanli Industrial Water Chiller

CONTACT

PRODUCTS DETAIL

Features

1 Intelligent welding head with temperature monitoring to monitor the protective lens for damage warning.

2 Galvanometer monitoring alarm

3 Protective lens for double protection

4 Focusing mirrors are drawer type for easy replacement

5. Welding head & cleaning head can be easy to changed.

6. Support Simplified, Traditional, Russian, English, Japanese, Korean, German, Portuguese, Spanish, Arabic

7 The gun head is light and easy to hold

8.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful. Fast welding speed, 2~10 times faster than traditional welding.

9.Easy operating need no training.

10.Safer, more environmentally friendly.


Applicable Materials

aluminum,stainless-steel sheet, iron sheet, galvanized sheet and other metal materials


Technical Parameters

Laser Power1000W/1500W/2000W/3000W (MAX )
Laser Wave Length1070 NM±20nm
Fiber Lengthstandard10M Maximum 15M
Laser Pulse Frequency1-20HZ
Pulse Width0.1-20ms
Adjusted spot range0.1-3mm
Minimum Welding pool0.1mm
Collimating focal length50mm
Focus length150mm
Focus adjustment range-10mm~+10mm
Spot adjustment range0~5mm
Gas sourceArgon or Nitrogen,≤1Mpa
Working modeContinuous or modulate
Welding cleaning headPortable single wobble combined handheld welding cleaning head(RelFar, model: FWH20-S20A,0.72kgs)
Welding cleaning systemTouch screen control panel(RelFar )
Beam qualityM2<1.2
Line width<5nm
Straight modulate0-5KHZ
Welding speed range0~120 mm/s
Cooling systemWater cooling, industrial water chiller, SCHYTJ-1500, Hanli
Welding thickness recommendations0.5-4mm
Welding gap requirements≤0.5mm
Cleaning width0-80mm
Working environment temperature 15~35 ℃
Humidity range of working environment< 70%No condensation
Working VoltageAC220V±10%, 50/60Hz, single phase
