Main Features
Suitable for various material;
High quality beam , focusing spot is smaller , that can achieve hyper fine marking ;
Thermal impact area is very small , will not produce thermal effet , will not produce material burning problem ;
Fast marking speed and high efficiency;
Stable performance , small size , lower power consumption .
Application Industry

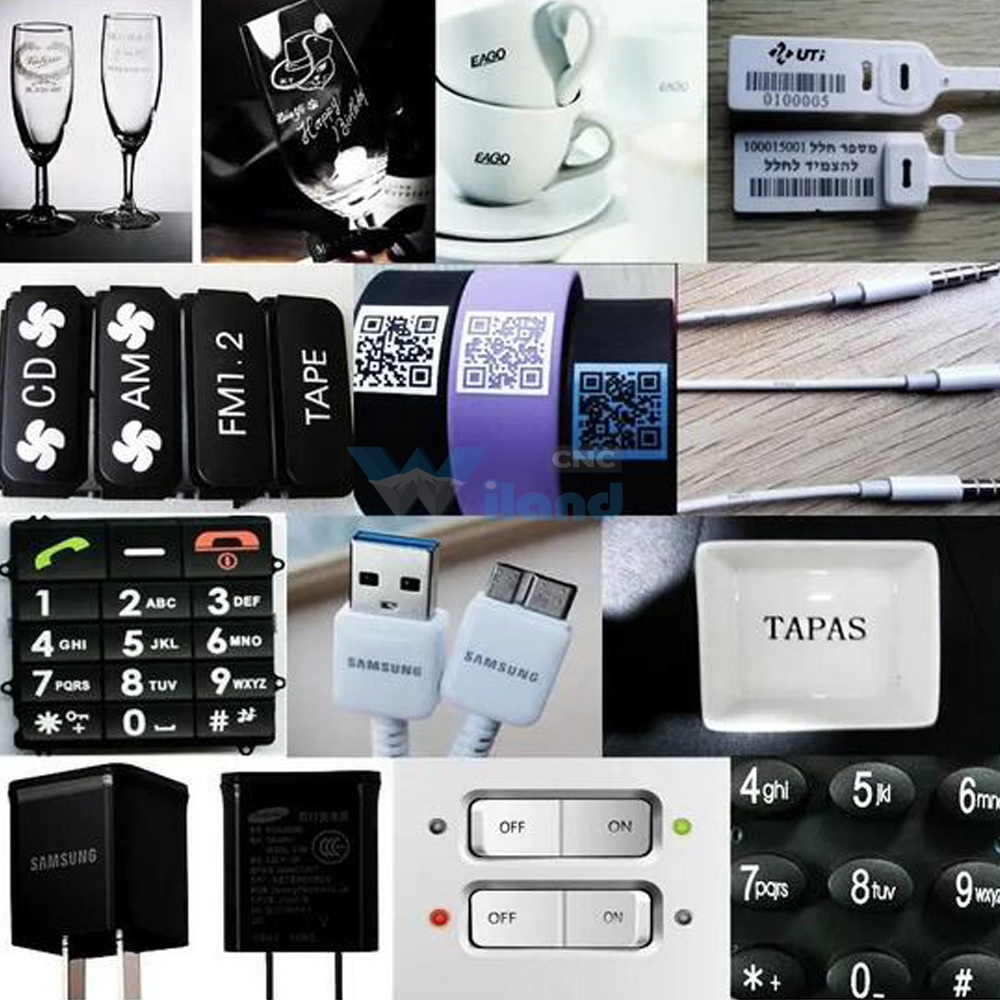

UV laser marking machine is mainly based on its unique low-power laser beam , especially suitable for the high-end market of ultra-fine processing . It is very suitable for cosmetics , drugs , food and other macro-molecule material packaging surface marking . The marking effect is fine , clear and firmly , and better than ink jet code , no pollution . It is widely used in marking and slicing of flexible PCB , silicon wafer micro-hole , blind hole processing , LCD glass qr code , glassware surface punching , metal surface coating plastic keys , electronic components , gifts , communication equipment , construction materials , rubber and other non-metallic materials .
UV Laser Marking Machine Technical Parameter | |
Laser Power | 3W/5W/10W/15W |
Laser Wavelength | 355nm |
Beam Quality | M2<1.2 |
Laser Repetition Frequency | 20-200KHz |
Marking Area | 100mm*100mm |
Maximum Optional Range | 300mm*300mm |
Marking Speed | ≤8000mm/s |
Engraving Depth | ≤0.01mm-0.5mm(it depends on the material) |
Minimum line width | 0.01mm |
Minimum character | 0.15mm |
Repeat accuracy | ±0.001m'm |
Demand for electricity | 220V/50HZ/6A |
Power consumption | ≤1500W |
Cooling way | Air-Cooling |
