Application Material
Suitable for all metal materials , such as common metals ( iron , copper , etc.),rare metals(gold , silver , platinum , titanium ,etc.),metal oxides (alumina ,zirconia ,etc.), special surface treatment (electroplating ,etc.),and is also suitable for various non-metallic materials , such as ABS ,ink , nylon , PVC ,epoxy resin and so on .
Also for color engraving on stinless steel , titanium ...

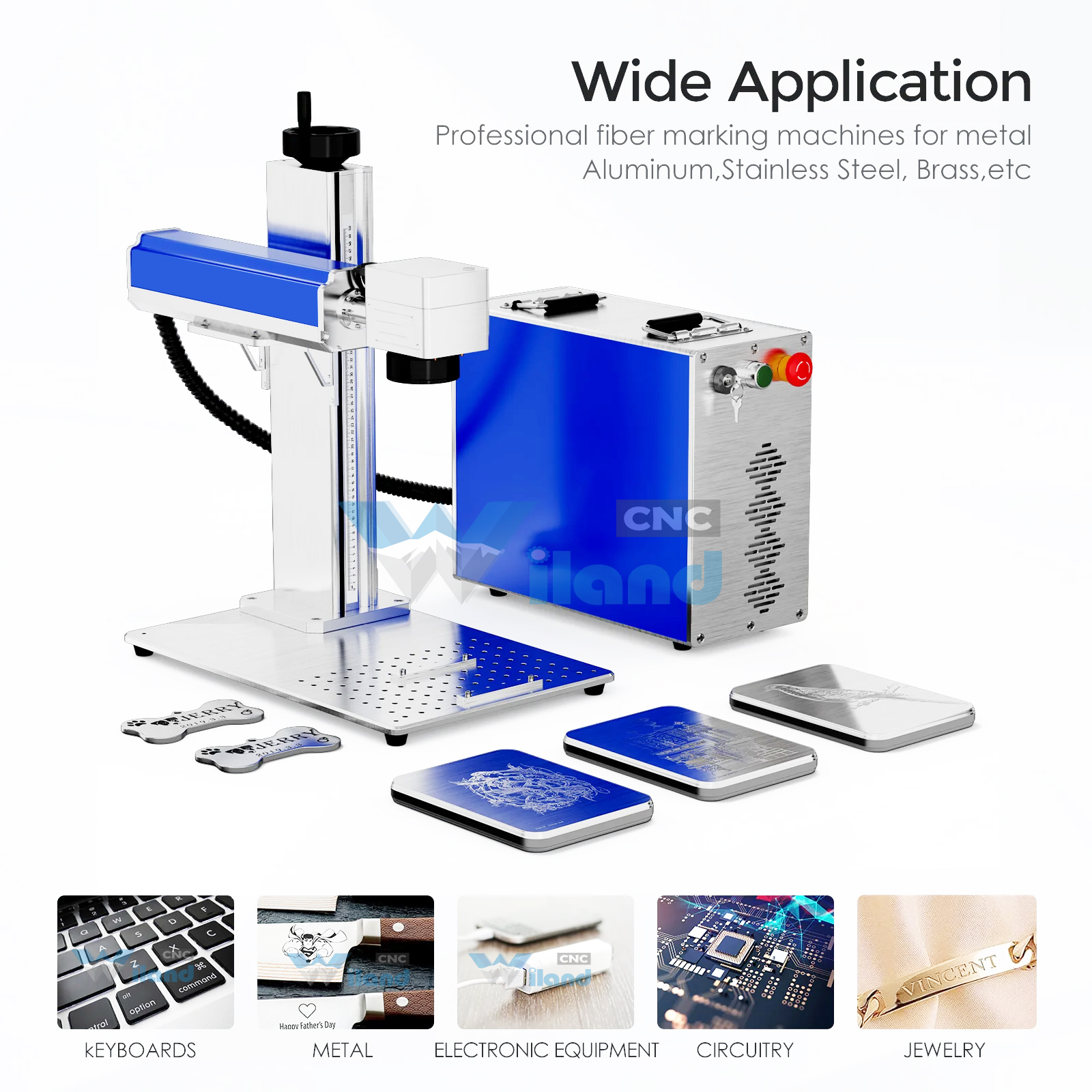

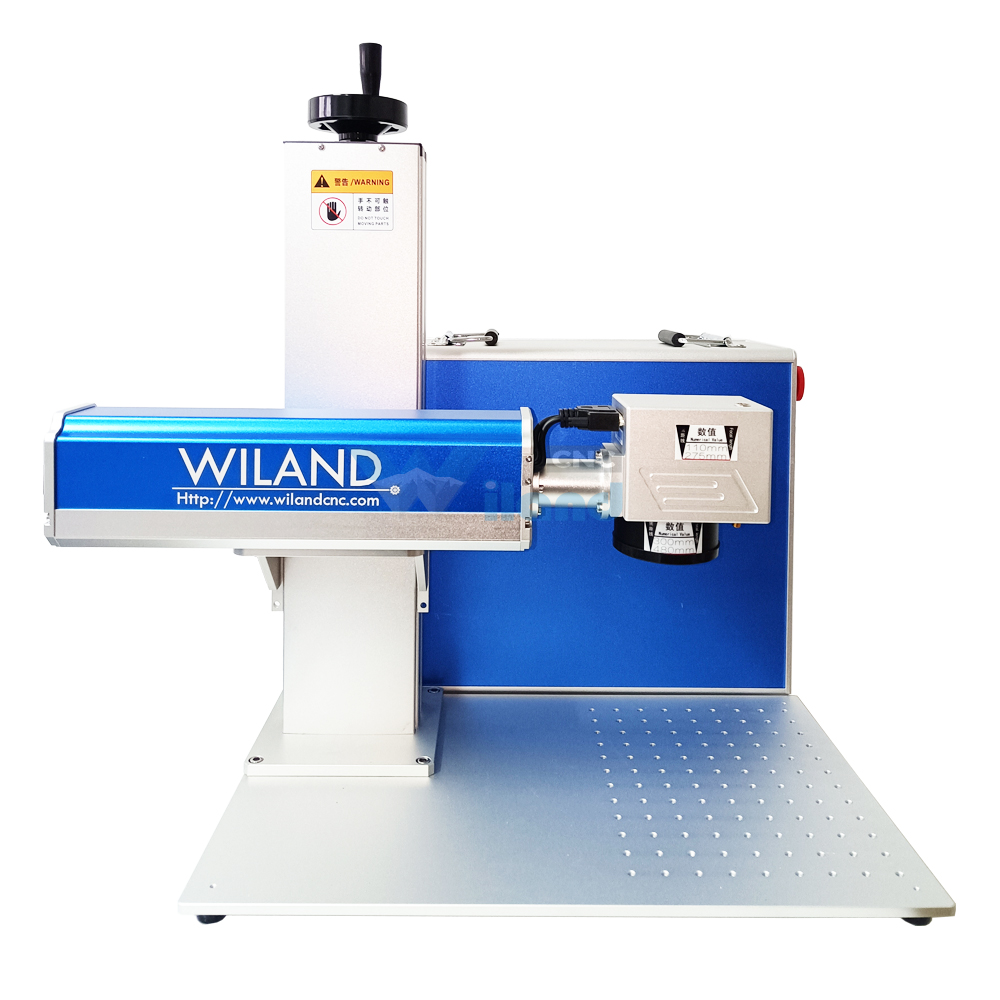

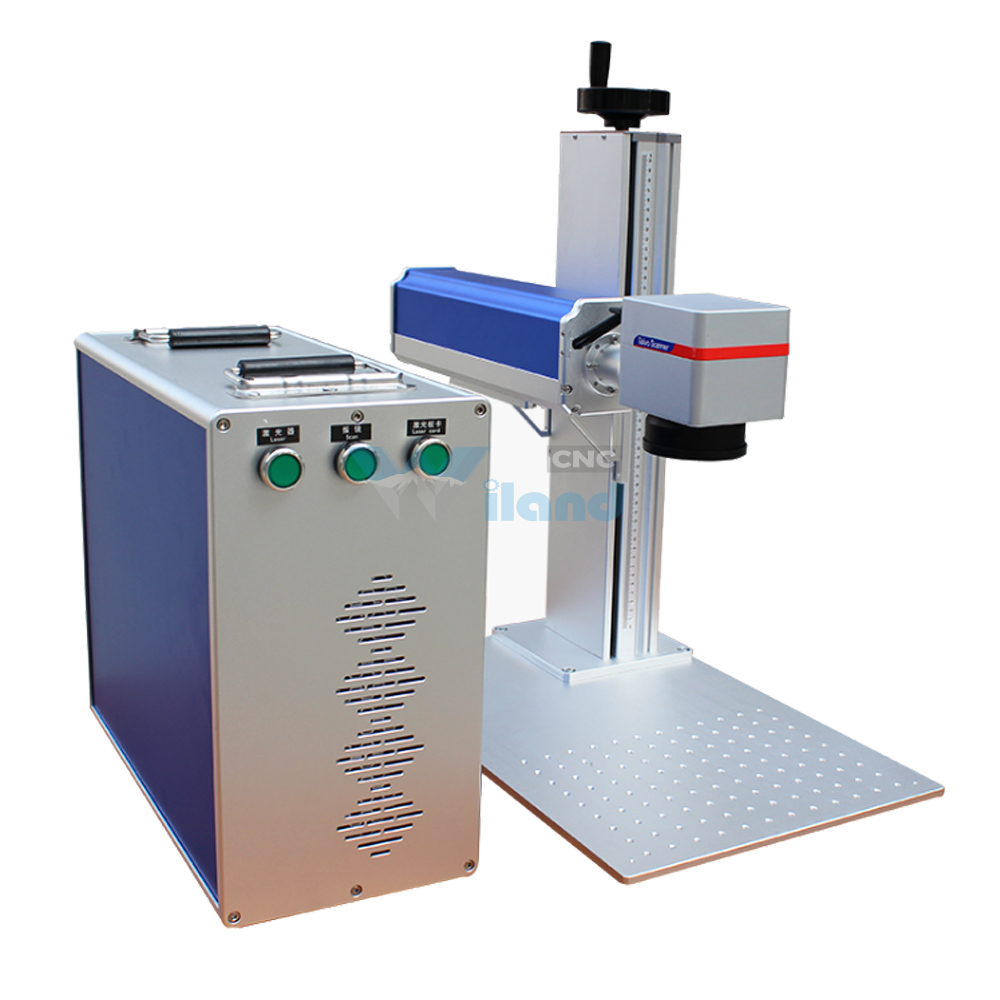

JPT MOPA M7 20W Fiber Laser Marking Machine | |
Model | WILAND-MOPA 20W |
Laser Type | Fiber Laser for all metals and hard plastic |
Power | 20W JPT MOPA M7 |
Marking area(logo size) | 70*70/110*110/150*150/175*175/200*200/300*300 optional one, but smaller, finer. |
Marking line width | 0.01~0.1mm |
Marking depth | 0.01~2mm(depend on material) |
Marking speed | ≤10000mm/s |
Voltage | 220V/50Hz/800W (110V/60Hz optional) |
Cooling method | Air cooling |
Package type | Paper box for air shipping & wooden box for sea shipping |
Package size | 86*50*52CM |
Gross weight | 45kg for paper box, 60kg for wooden box |
Wavelength | 1064nm |
