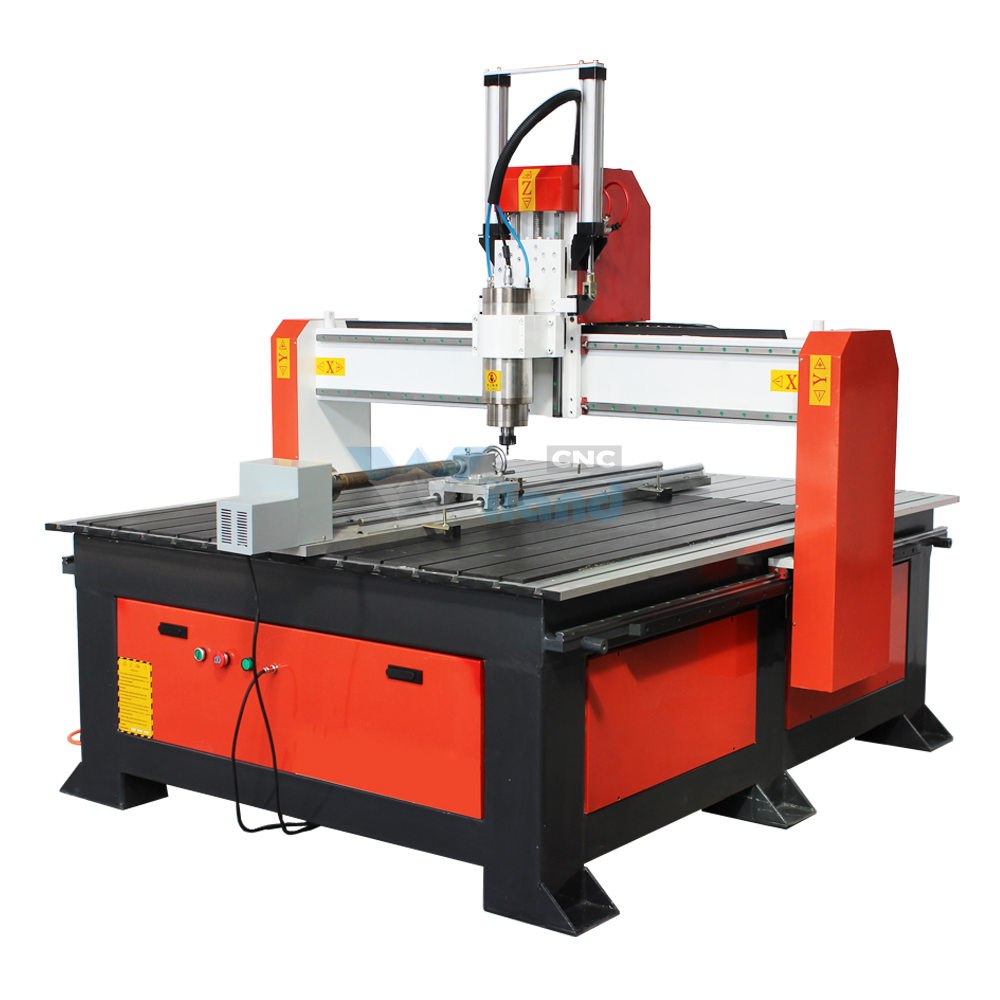

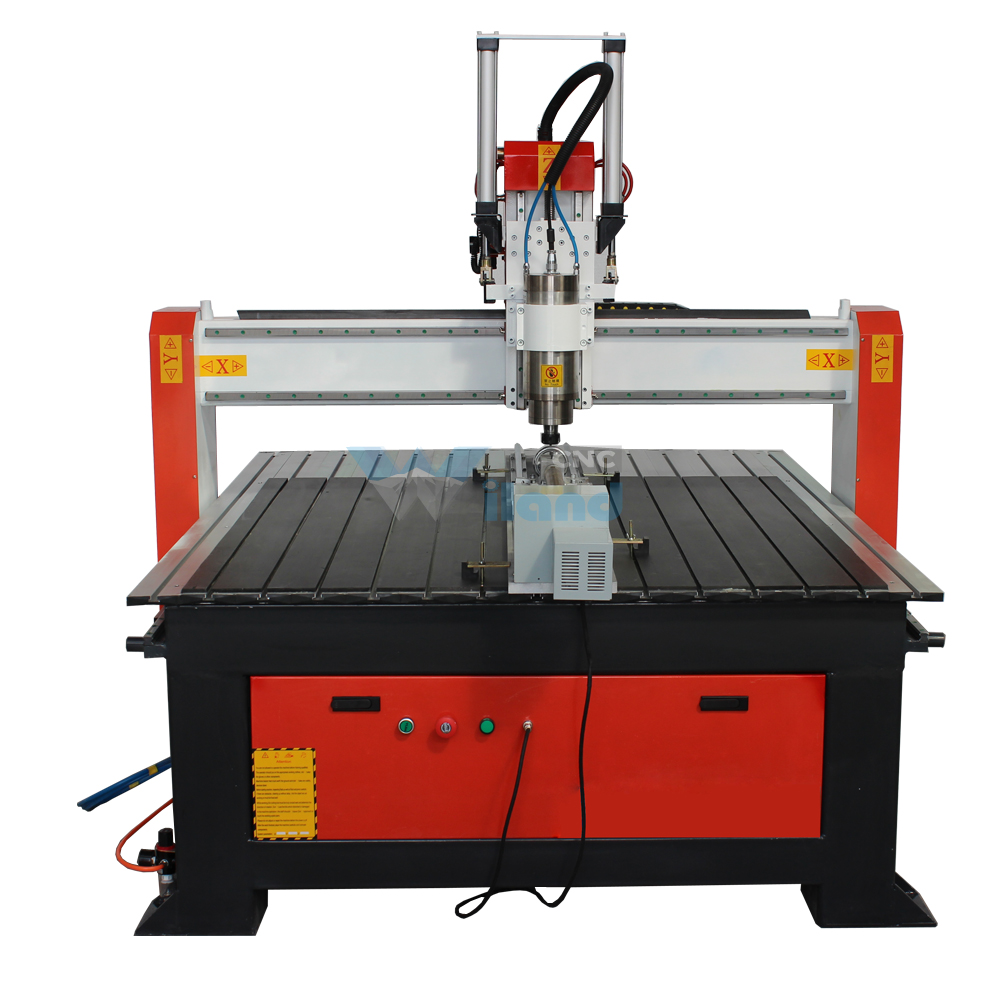

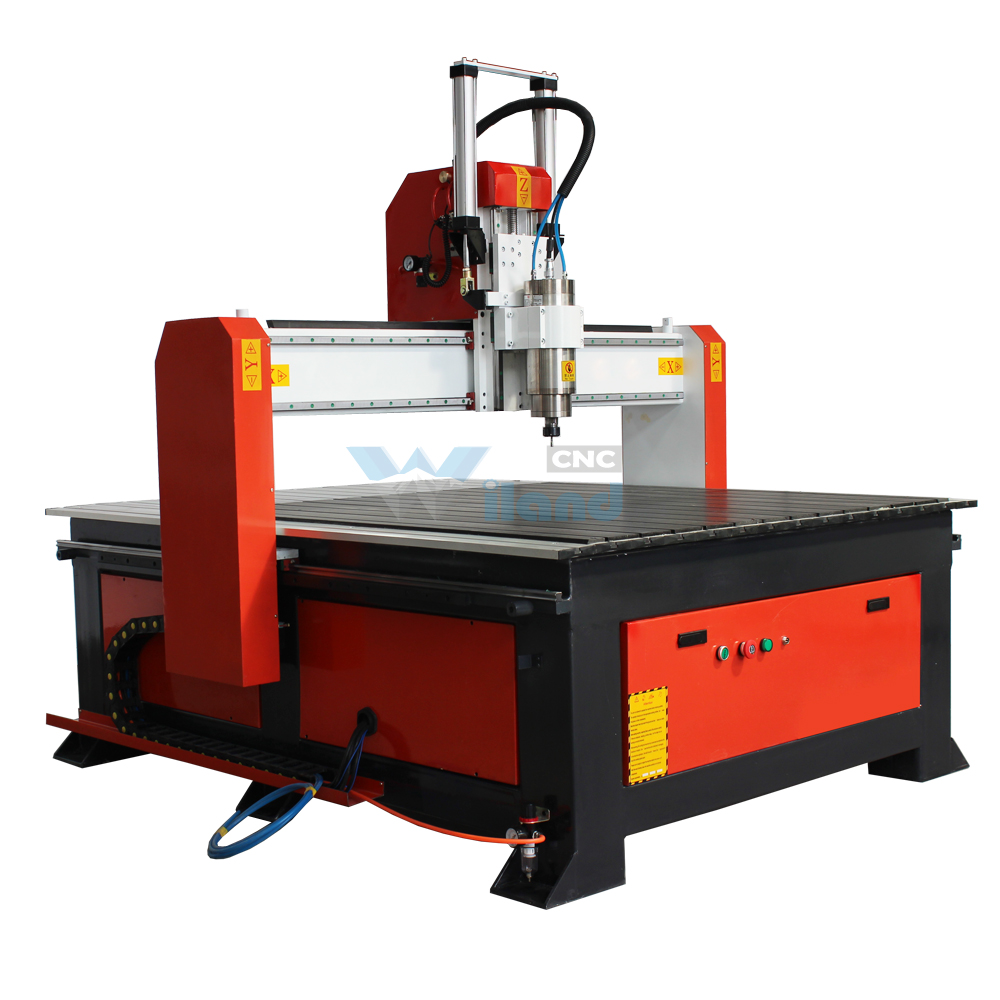

WLD-1313-5.5Kw Woodworking CNC Router With 4 Axis Mach3 Controller

Model: WLD-1325A

Working Size: 1300*2500*200mm

Power:5.5Kw

Spindle:Water Cooling Spindle

Collet: ER25

Control System: MACH3 4 Axis

Working Table : Aluminum T Slot Table


CONTACT

PRODUCTS DETAIL

WLD-1313-5.5Kw Woodworking CNC Router With 4 Axis Mach3 Controller

Machine Characters

  1. The machine body structure adopt high quality steel pipe welding , with geometry frame structure ,strong bearing strength , processing jjitter low .

  2. Machine 3 axis adopt Taiwan linear square guide rail , double class four row ball slider operating smoothly , high accuracy, durable .

  3. XY axis adopt super-modulus rack and pinion with high speed and accuracy . At the same time , Z axis use imported ball screw , high precision .

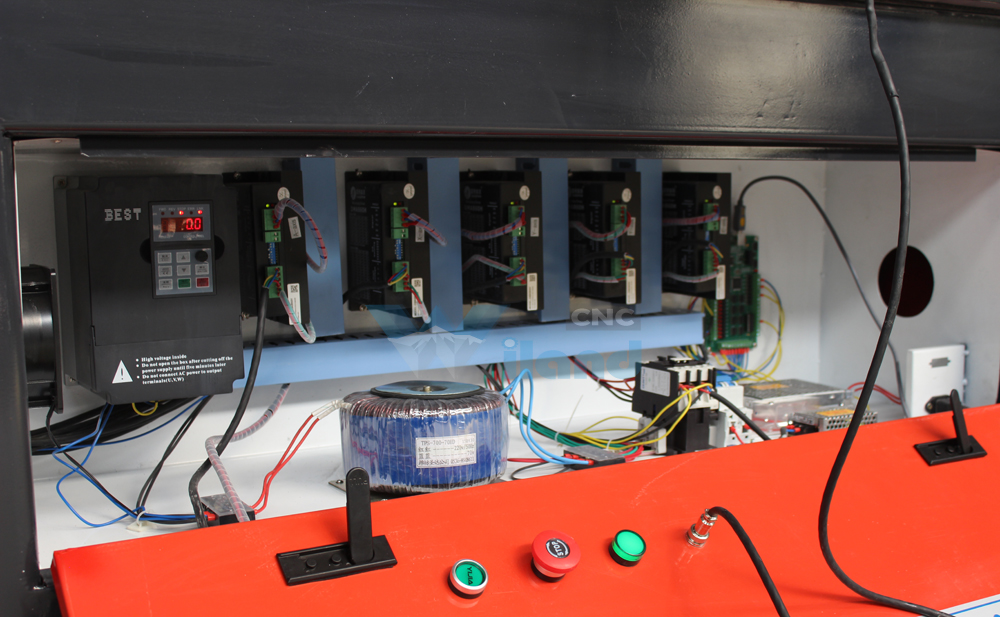

  4. Adopt high speed stepper motor and drivers . Two motors for Y axis make machine operating more stable and higher accuracy .

  5. 3.2KW/5.5KW water cooling spindle match with domestic well-known brand of high power water-cooled frequency conversion brushless motors ,small noise , strong and free maintenance , continuous working .

  6. T-slot aviation aluminum working table covered PVC protects the tools from breaking . T-slot with clamps makes it convenient to fix the material .

  7. T-shape gantry makes 3 axis working stable , high speed and accuracy . Gantry moving , customer can work on any area of the materials .

  8. Optional control system , NCStudio/DSP/Mach3 , high stability , high efficiency , easy to learn .

  9. Continuous working after the break point /power failure , lower the rejection rate .

  10. Good software compatibility , can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software ,2D/3D processing , more convenient to using .

Applicable Industries

√Woodworking Industry: cupboard door , craft wooden door ,solid wood door , panel engraving and cutting , stereo wave board processing , panel furniture , painting door , paint-free door , screen , craft windows working , furniture milling and engraving ,wooden musical instrument 3D engraving.


√Advertising Industry: advertising signs , acrylic cutting , logo making, plastic molding , a variety of adverting and decorative products making .



ModelWLD-1325AWLD-1530AWLD-2030A
Working Size1300*2500*200mm1500*3000*200mm2000*3000*200mm
MaterialsWelded steel pipe machine holder and machine bed , cast iron verticalshafts and transom
Working TableAircraft aluminum T slot / Vacuum Table / Stainless Steel Water Slot
Moving TypeGantry Moving
Guide RailLinear square guide rail (Hiwin ,Taiwan)
TransmissionRack transmission for XY axis ,ballscrew for Z axis
Driving TypeStepper Motor
Spindle Power3.2KW/5.5KW Water Cooling
Spindel Speed0-24000RPM
Collet TypeER20/ER25
Suitable Tools3.175mm,4mm,6mm,8mm,10mm,12.7mm
Empty Traveling Speed0-25000mm/min
Engraving Speed0-12000mm/min
Machine Accuracy0.03mm
Resetting accuracy0.05mm
Control SystemDSP/MACH3/PCI NCStudio
Carving InstructionsG Code/U00/mmg/plt/HPGL
Design SoftwareUcancam/Artcam/JDPaint/Type3
Running Temperature0-45℃
Relative Humidity30%-75%
Optional ItemsDSP/Mach3/Original NCStudio control system, air cooling spindle,vacuum table , dust collector , auto oiling system , computer cabinet , rotary axis , wireless handwheel , water tank cooling , servo motor , etc
