Fiber laser cleaning machine is a high-tech product of the new generation of surface treatment.It is easy to remove resin stains, paint-coat, rust, cladding material, and paint. It is widely applicable in a variety of industries, which can effectively reduce the machine maintenance cost and improve the industrial cleaning effect.

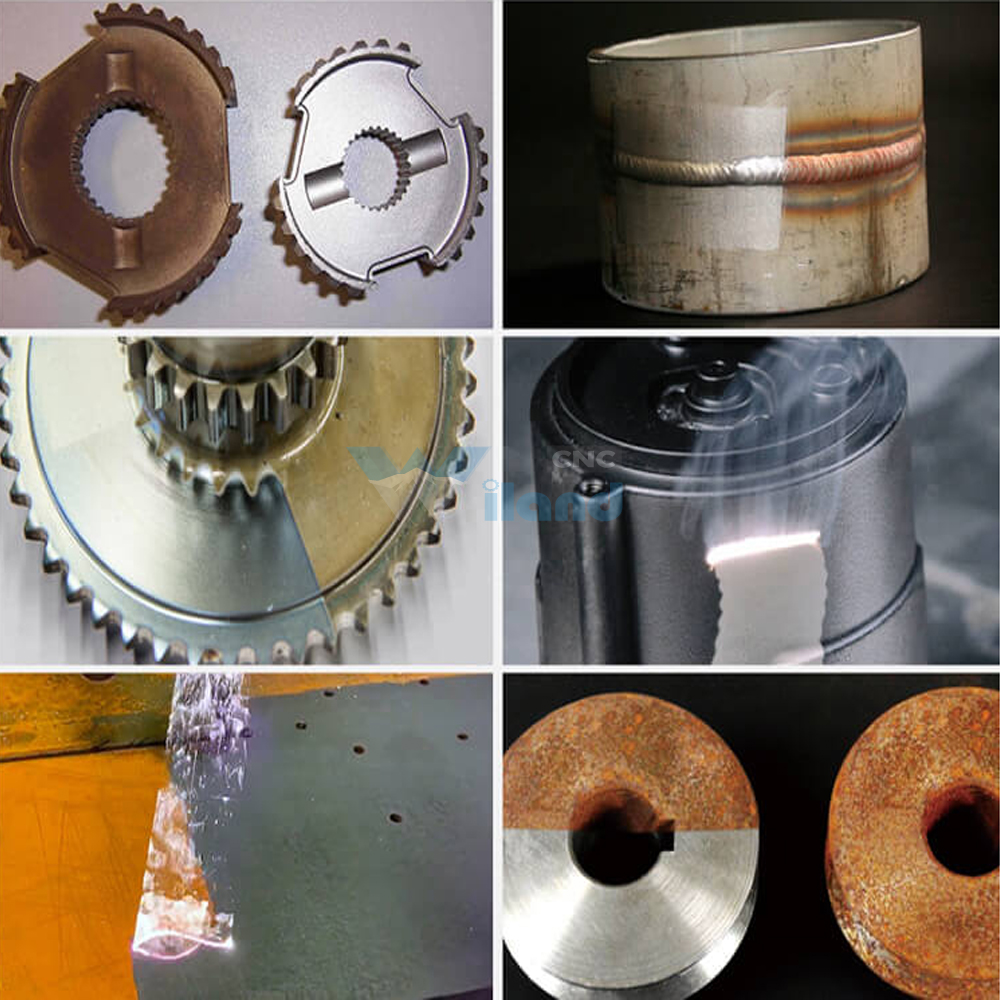

Fiber laser cleaning machine mainly used for
Metal surface rust removal
Surface paint cleaning
Surface oil stain/contaminant cleaning
Coating surface cleaning
Welding/coating surface pre-treatment
Stone figure surface dust & attachment cleaning
Plastic mold residues cleaning
WHY CHOOSE WILAND CNC ?
▶ 10 years of R & D and production experience in laser cnc machine industry.
▶ Fast delivery,directly shipping from factory , door to door service .
▶ Global after-sales , online technical support within 12 hours.
▶ 3-year warranty and professional training courses
▶ Cost-effective WILAND focus on high quality and inexpensive

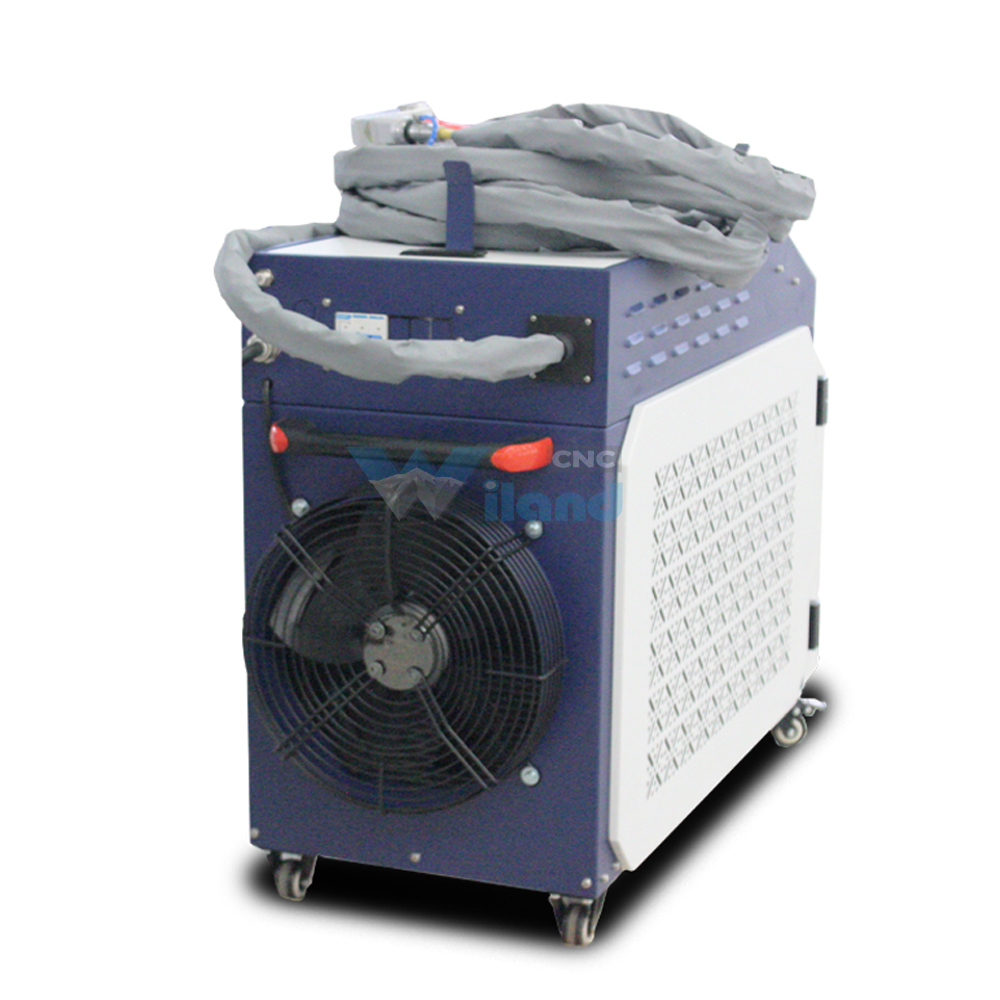

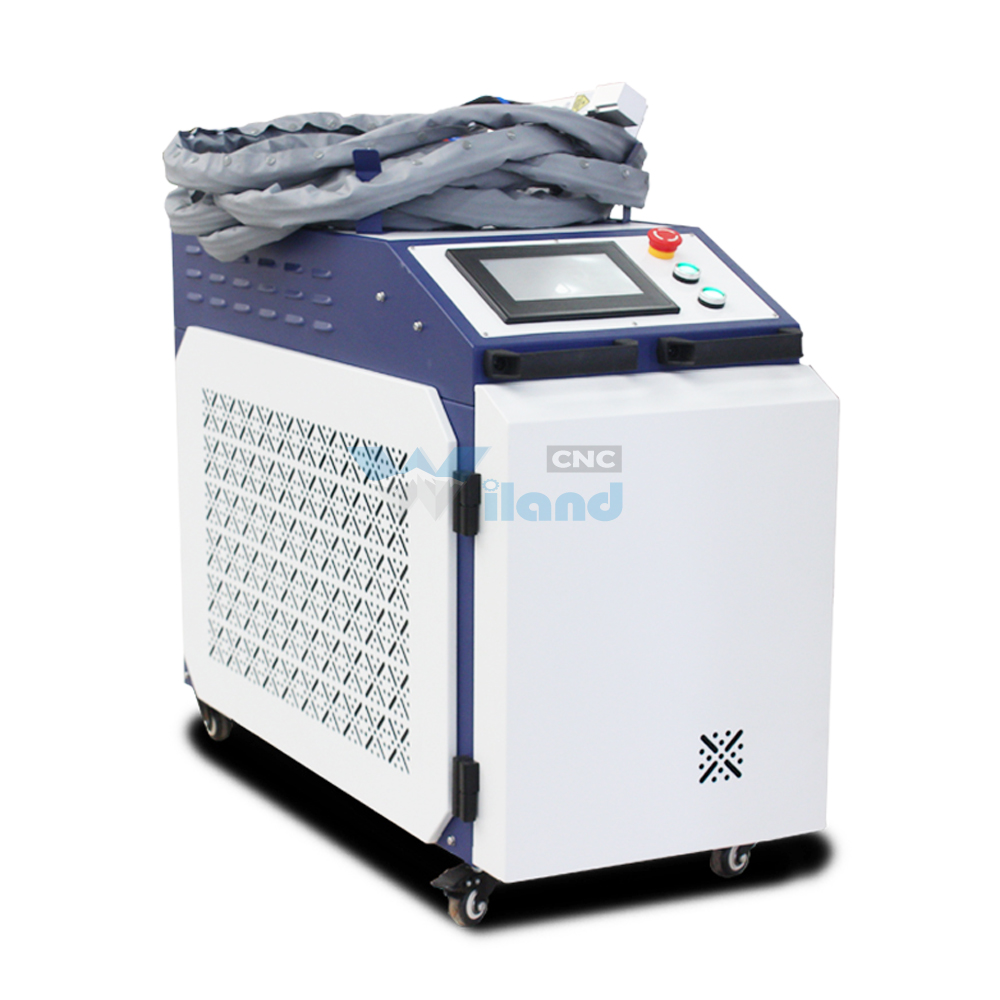

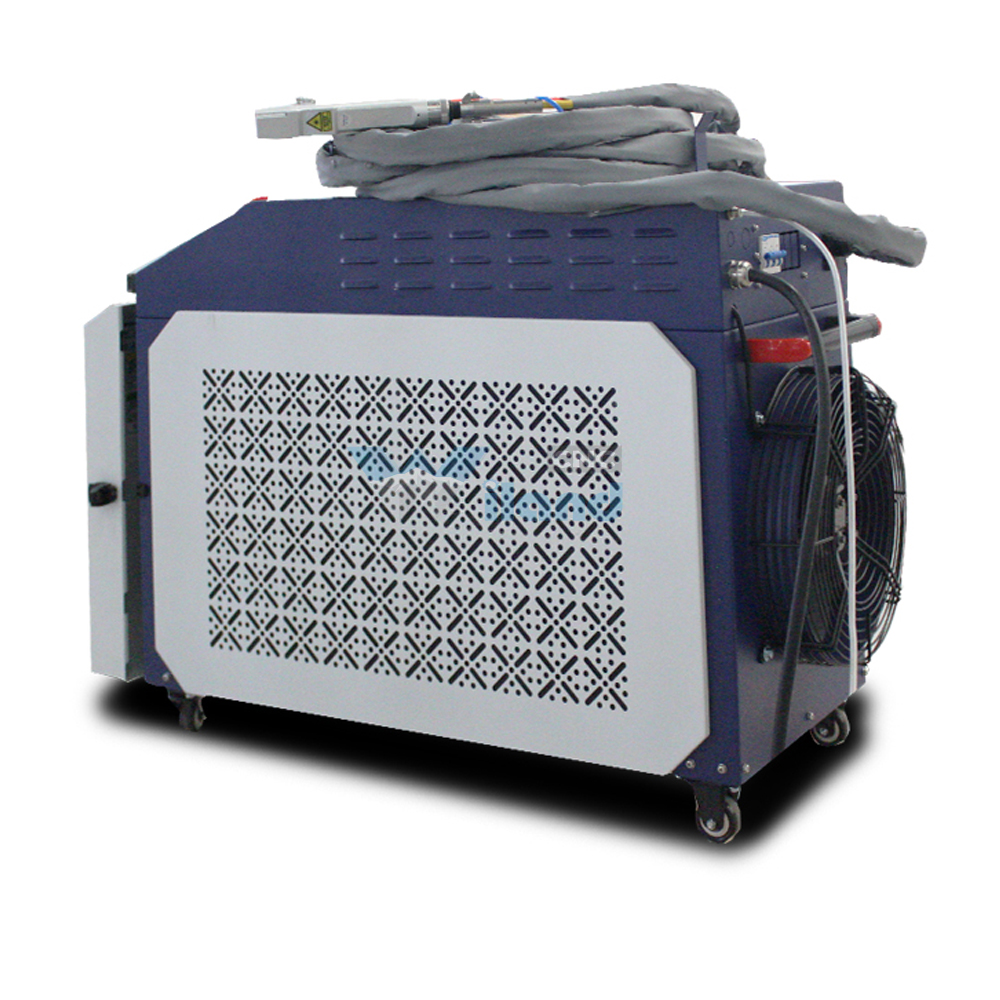

Handheld Laser Cleaning Machine 100W-2000W
◎Non-contact cleaning, no damage to the substrate.
◎Precise cleaning, can achieve selective cleaning of precise position and size. ◎No chemical cleaning fluid, no consumables, safe and environmentally friendly.
◎Simple operation, can be hand-held or fitted with manipulator to realize automatic cleaning.
◎The ergonomic design greatly reduces the labor intensity of operation. ◎High cleaning efficiency and save time.
◎The laser cleaning system is stable and requires almost no maintenance. ◎Optional mobile battery module.
Technical Parameters
Operating environment | ||
voltage | 220V / 380V 50 / 60HZ | |
power consumption | < 8000W ( including water cooler ) | |
working temperature | 5°C~ 40°C | |
Optical parameters | ||
laser power | CW | 1000W / 1500W / 2000W |
PLUSE | 100W / 200W / 300W / 500W | |
Wavelength type | Continous / Pluse | |
Power stability | better than 5% | |
Power adjustment range(%) | 10-100 (gradient adjustable) | |
Repetition frequency(KHz) | 20-200 (gradient adjustable) | |
Fiber length | 5-10m | |
Cooling method | Water-cooled | |
Cleaning head parameters | ||
Scanning range | 5mm ~ 120mm , Continuously adjustable | |
Focal length of field lens ( mm ) | 160mm (Optional 160mm-500mm ) | |
Depth of focus | max 10mm | |
Mechanical parameter | ||
Overall size | about 1055mmx620mmx1090mm | |
Total Weight | about 150KG | |
cleaning head weight | about 1.9kg ( including isolator) | |
Operation method | hand-held / automated |
