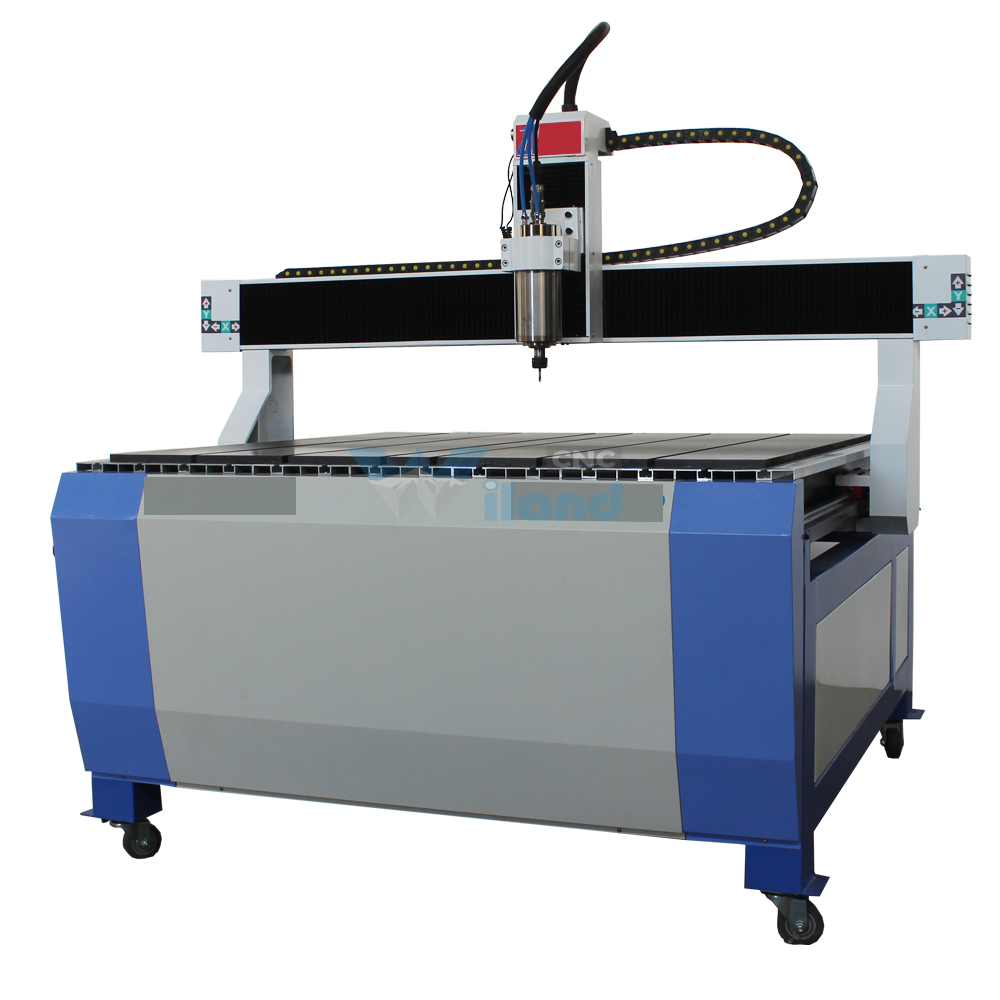

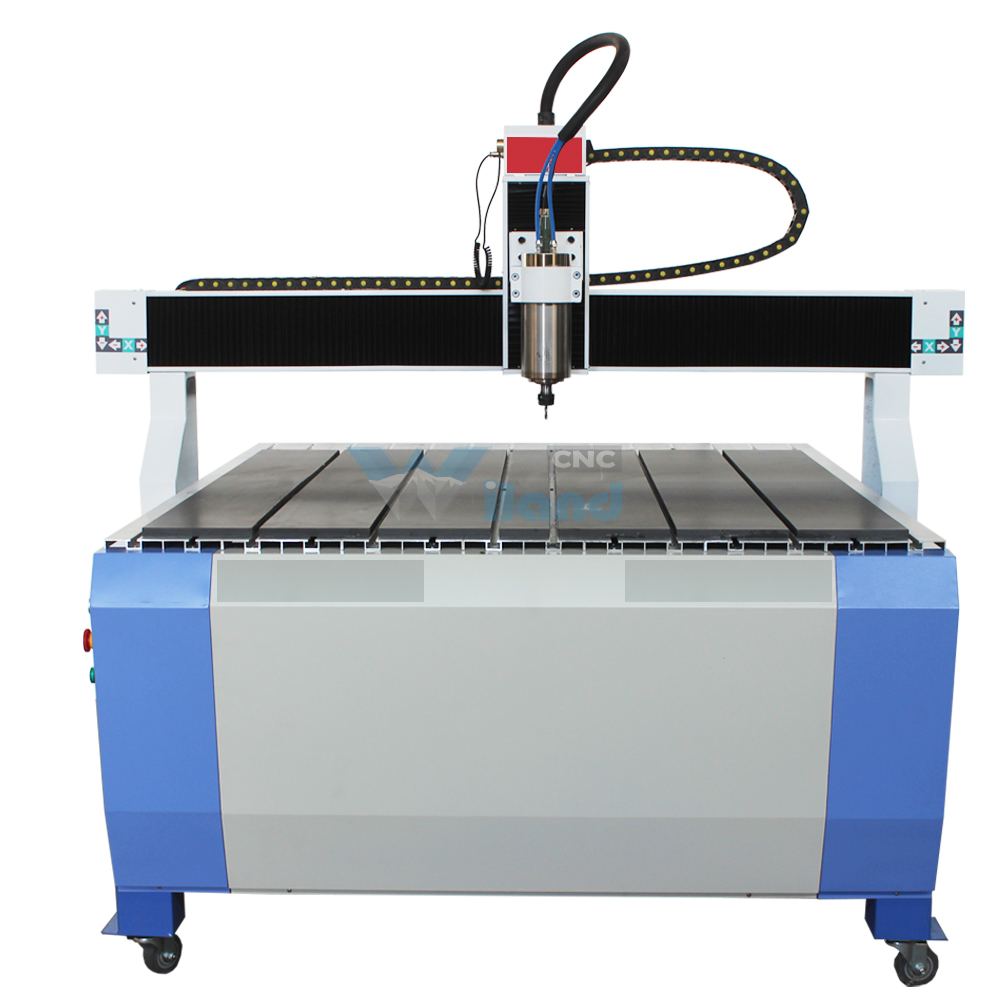

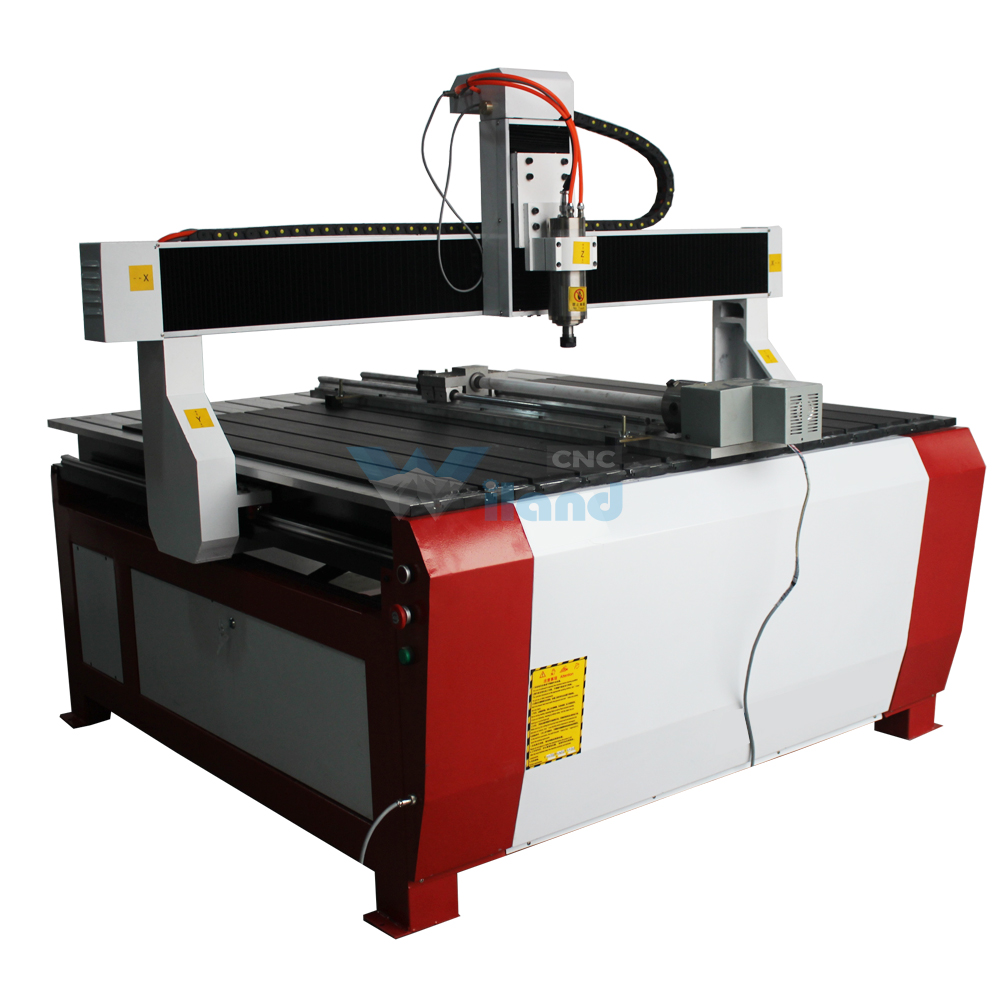

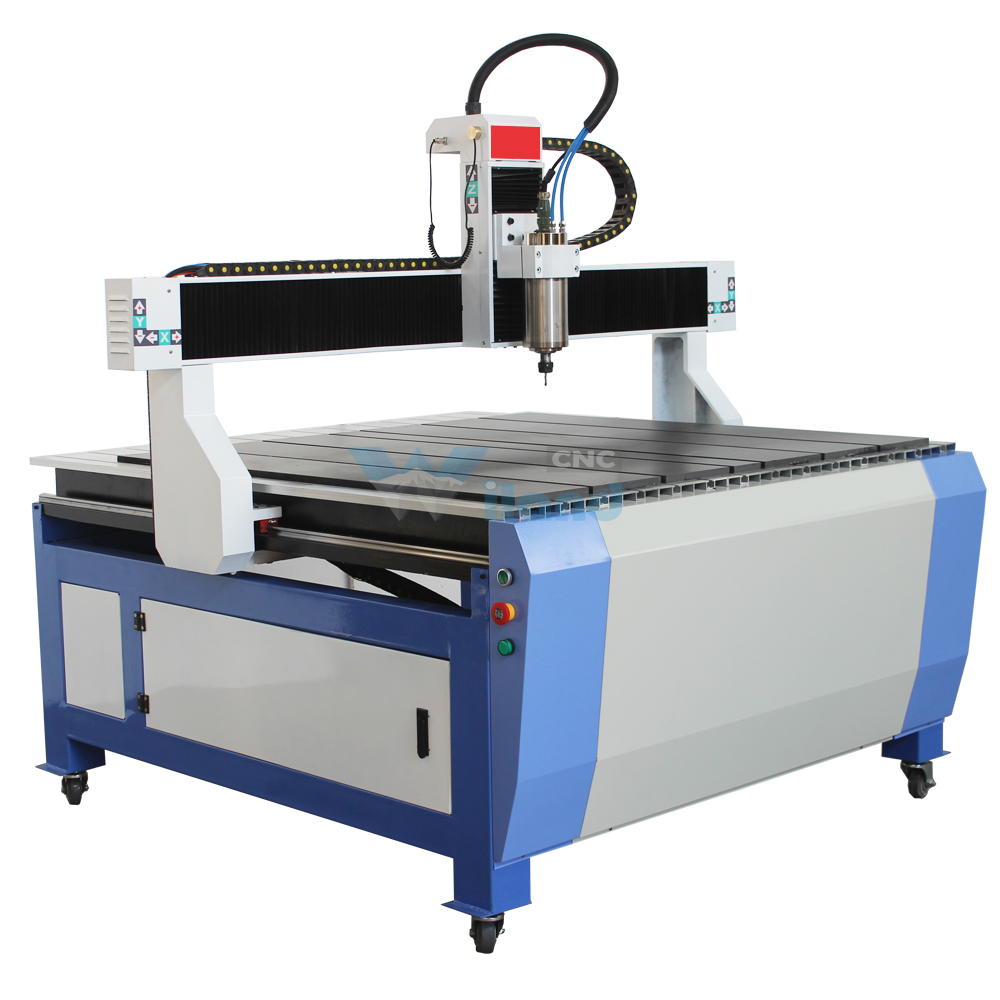

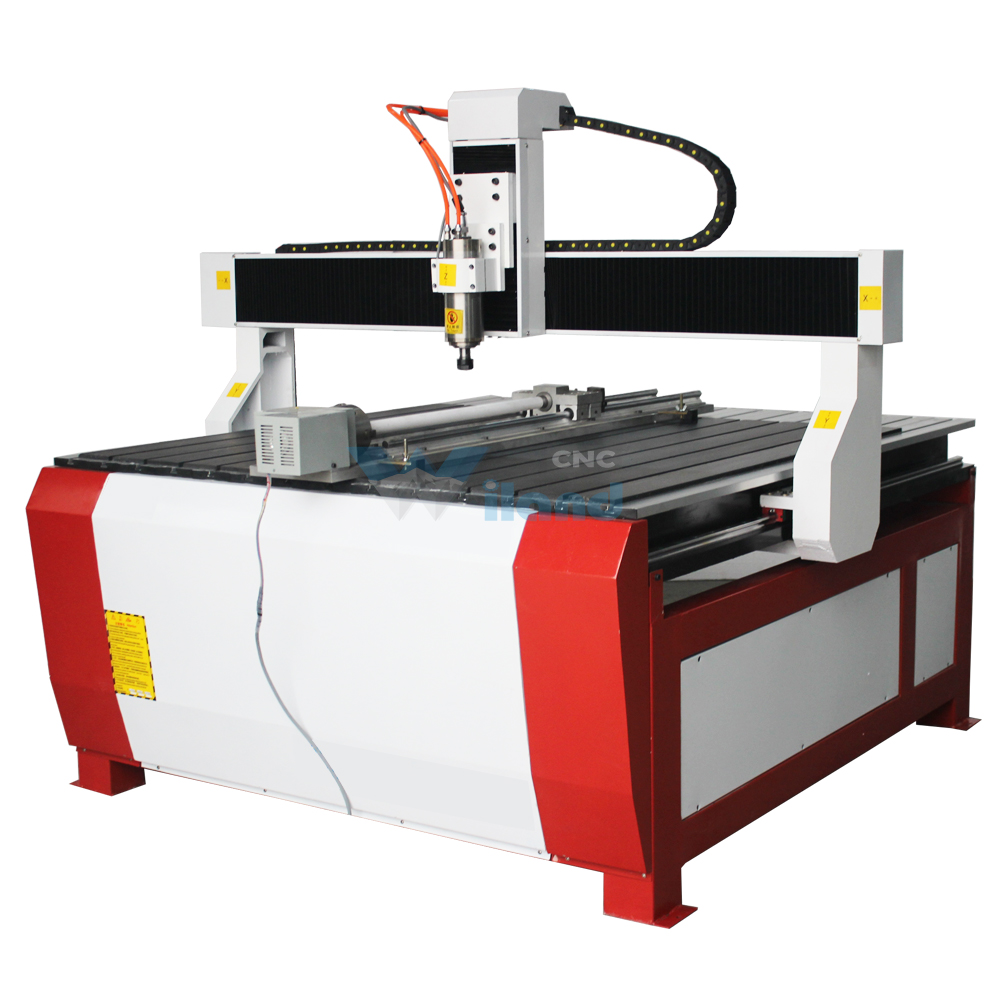

Model: WLD-6090/6012/1212/1218/1224
Power: 1.5KW/2.2KW/3.2KW
Spindle: Water Cooling Spindle
Control System: NCStudio/DSP/Mach3
Working Table: Aluminum T Slot Table
Machine Characters:
1.Cast iron lathe bed. Stable Running with less Vibration.
2.With Gantry moving type, stable and durable for long time using.
3.XYZ three axis are with linear square guide rail, Hiwin, Taiwan.
4.Optional 1.5KW/2.2KW/ 3.2kw water cooling spindle .
5.Dust-Proof design for XZ-axis.
6.Thick strong aluminum alloy T slot working table.
7.Optional DSP offline or Mach3 control system or PCI NcStuido controller
8.China powerful stepper motor and Leadshine stepper driver .
9.Auto tools calibration for Z-axis ,and Led light for night working.
Applicable Industries
Advertisement engraving and cutting , handicraft industry ,advertisement logo , crystal word marking , toys and gifts , arwork engraving , various types of man-made plate , LED , neon literally cutting roove , platic molding light bow , interior decoration industry , mold manufacturing , wood processing ,craft manufacturing , light box cutting , building model cutting , indoor decoration cutting , building ,small metal , stationery , rulers , badges , department card , a variety of signs , trademark processing , etc .
Applicable material:
Organic glass , acrylic , ABS ,PVC , MDF , double-color board , copper , aluminum composite panel ,wood , ox horn , marble , copper , aluminum industry ,3D technology , acrylic cutting , wave board , man-made stone , wood etc .Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble ,other metal and non-metal materials .
Technical Parameters
Model | WLD-6090 | WLD-1212 | WLD-1224 |
Effective Working Area | 600*900*120mm | 1200*1200*120mm | 1200*2400*150mm |
Materials | Cast iron machine bed , cast aluminum gantry | ||
Working Table | Aircraft aluminum T slot | ||
Moving Type | Gantry moving | ||
Guide Rail | Hiwin linear square guide rail | ||
Transmission | Ballscrew | ||
Driving Mode | Stepper motor | ||
Spindle Motor | 1.5/2.2/3.2KW | ||
Collet Type | ER11/20 | ||
Suitable Tools Diameter | 3.175mm,4mm,6mm,8mm,10mm,12.7mm | ||
Voltage | AC220V,50/60HZ,Single phase | ||
Spindle Speed | 0-24000rpm | ||
Empty Travelling Speed | 0-8000mm/min | ||
Engraving Speed | 0-6000mm/min | ||
Machine Accuracy | 0.05mm | ||
Resetting Accuracy | 0.05mm | ||
Diagonal Error | 0.5mm | ||
Control System | PCI NCStudio | ||
Carving Instructions | G code * U00*mmg*plt HPGL | ||
Design Software | Ucancam/Artcam/JDPaint/Type3 | ||
Running Environment | 0-45℃ | ||
Relative Humidity | 30%-75% | ||
Optional Items | DSP/Mach3/Original NCStudio controlsystem , air cooling spindle ,vacuum table ,dust collector , computer cabinet ,rotary axis , wireless handwheel,water cooling system , servo motor , etc |
