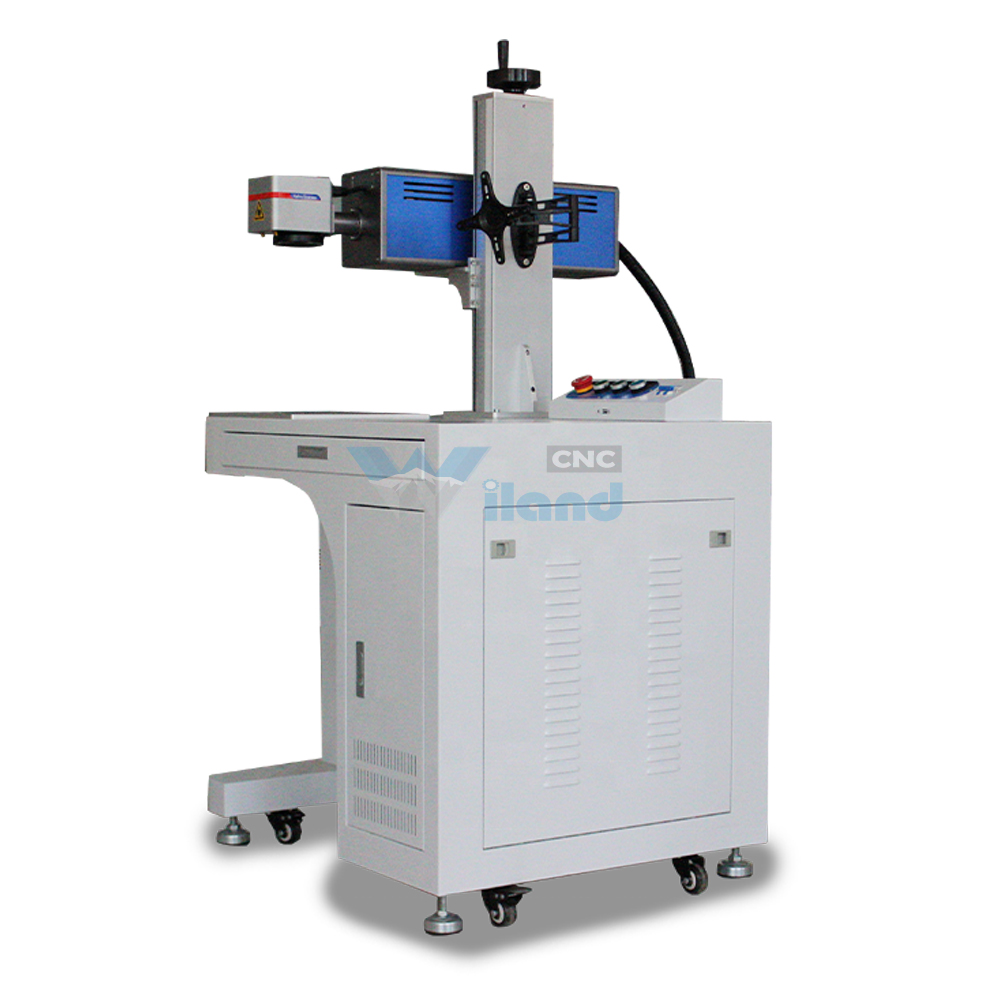

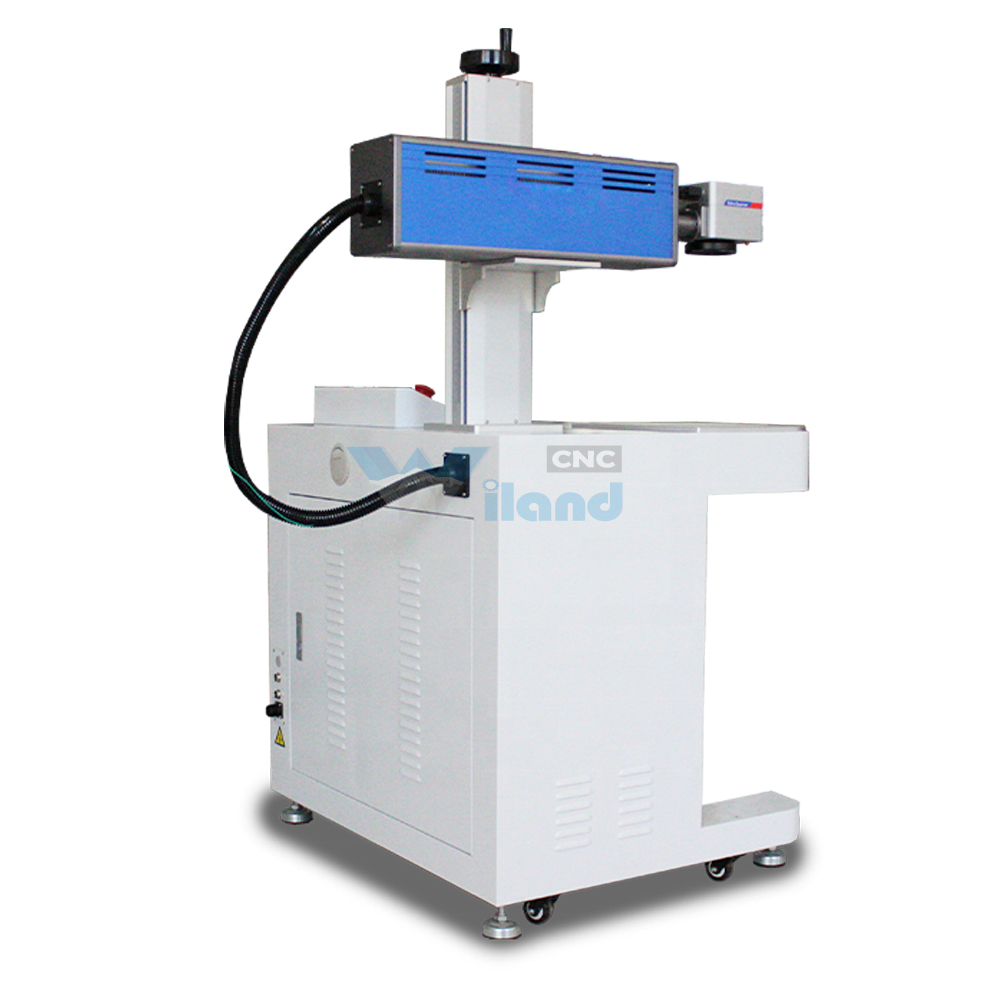

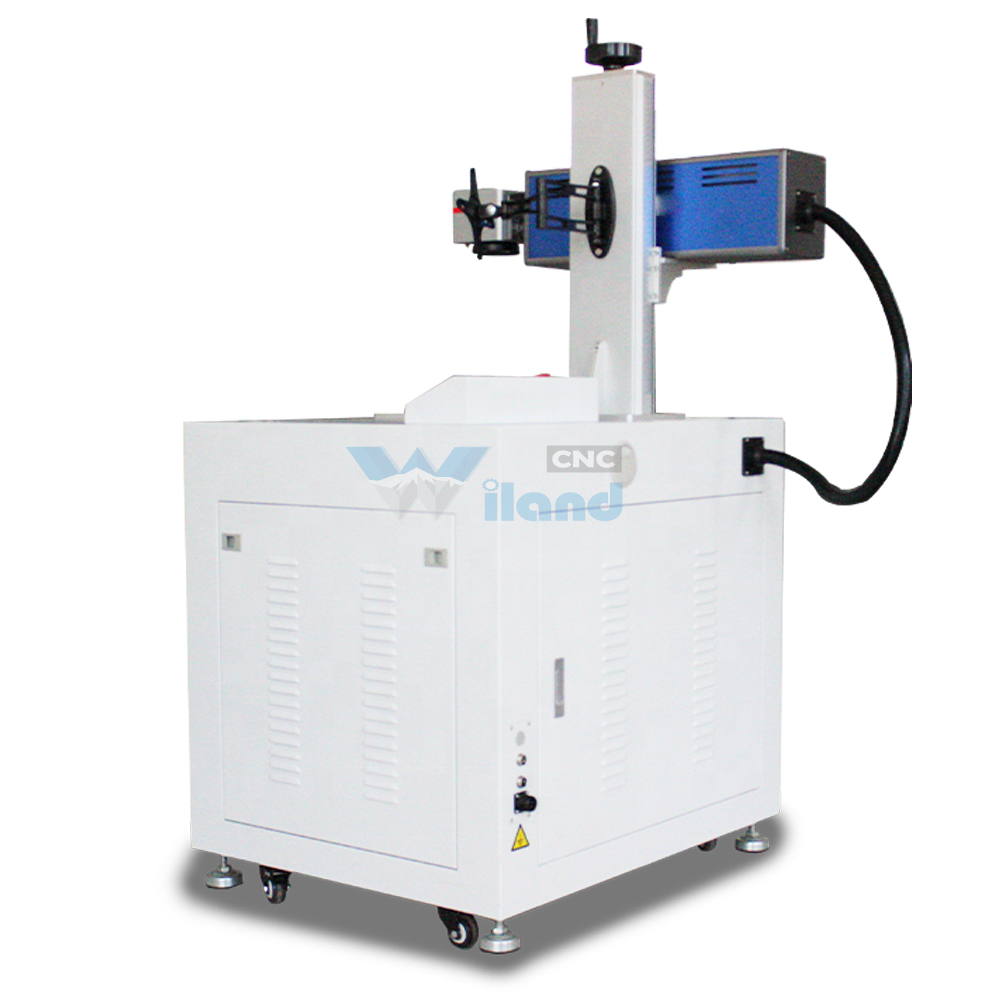

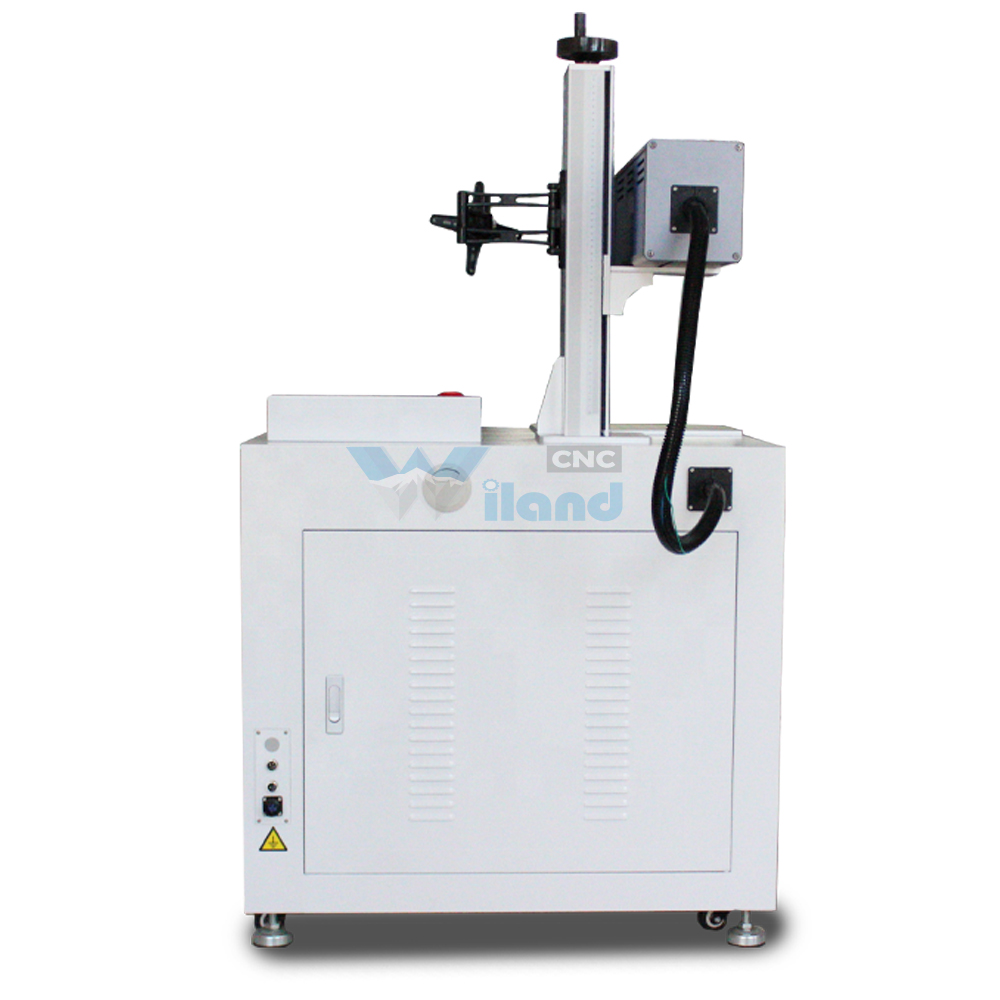

CO2 Laser Marking Machine

Model: WLD-CO2

Power: 30W/50W

Marking Area: 110*110mm

Cooling Way: Air Cooling / Water Cooling

Software: EZCAD

CONTACT

PRODUCTS DETAIL

Machine Features

1.Marking precisioni , speed , engraving depth arbitrary control ;

2.Stable laser power , suitable for all non-metallic materials ;

3.No consumable materials , low processing cost , high laser life of 20000-30000 hours ;

4.Clear marking , not easy to wear off , small power consumption , environmental protection , energy saving ;

5.Simple operating system , flexible and convenient typesetting , compatible with AUTOCAD , CORELDRAW , PHOTOSHOP and other software output files ;

6.Chinese and English characters , numbers , bar codes , qr codes , graphics is available , support PLT , DXF , AI , BMP and other file formats , can also directly use SHX , TTF font library ;

7.The system can automatically encode and print the serial number , batch number , date and so on .

Application Industry

Mainly used in some occasions that require more precision , used in food , medicine , wine ,electronic components , integrated circuit (IC) ,electrical appliances, mobile phone communications , building materials , PVC pipe and other industries . Suitable for the material of wood , glass , acrylilc ,paper and so on. Rubber and other non-metallic materials .

Technical Parameters

CO2 Laser Marking Machine

Laser Power

30W/50W

Laser Wavelength

10.6µm

Beam Quality

M21.2

Laser Repetition Frequency

1-20KHz

Marking Area

100mm*100mm

Maximum Optional Range

300mm*300mm

Marking Speed

8000mm/s

Engraving Depth

0.01mm-mm( it depends on the material)

Minimum Line Width

0.01mm

Minimum Character

0.2mm

Repeat Accuracy

±0.001mm

Demand for Electricity

220V/50HZ/6A

Power Consumption

700W

Cooling Way

Air Cooling / Water Cooling
