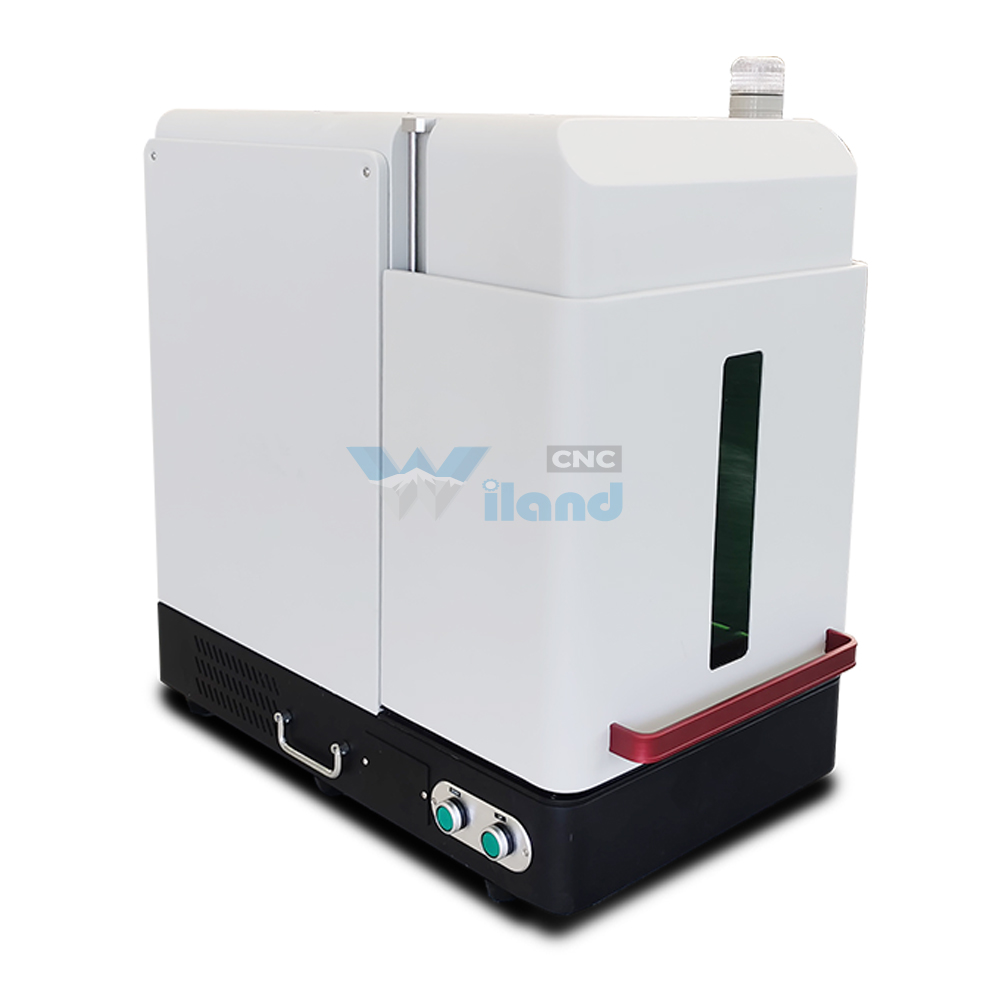

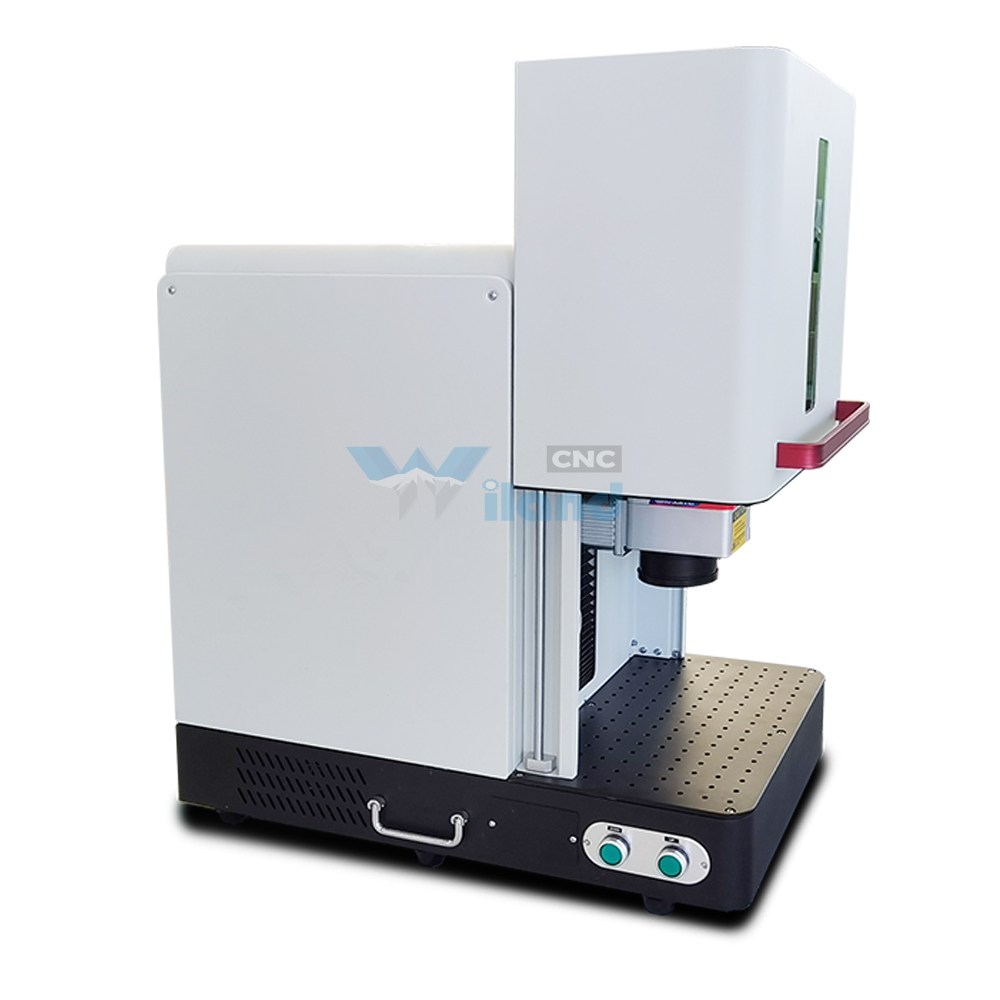

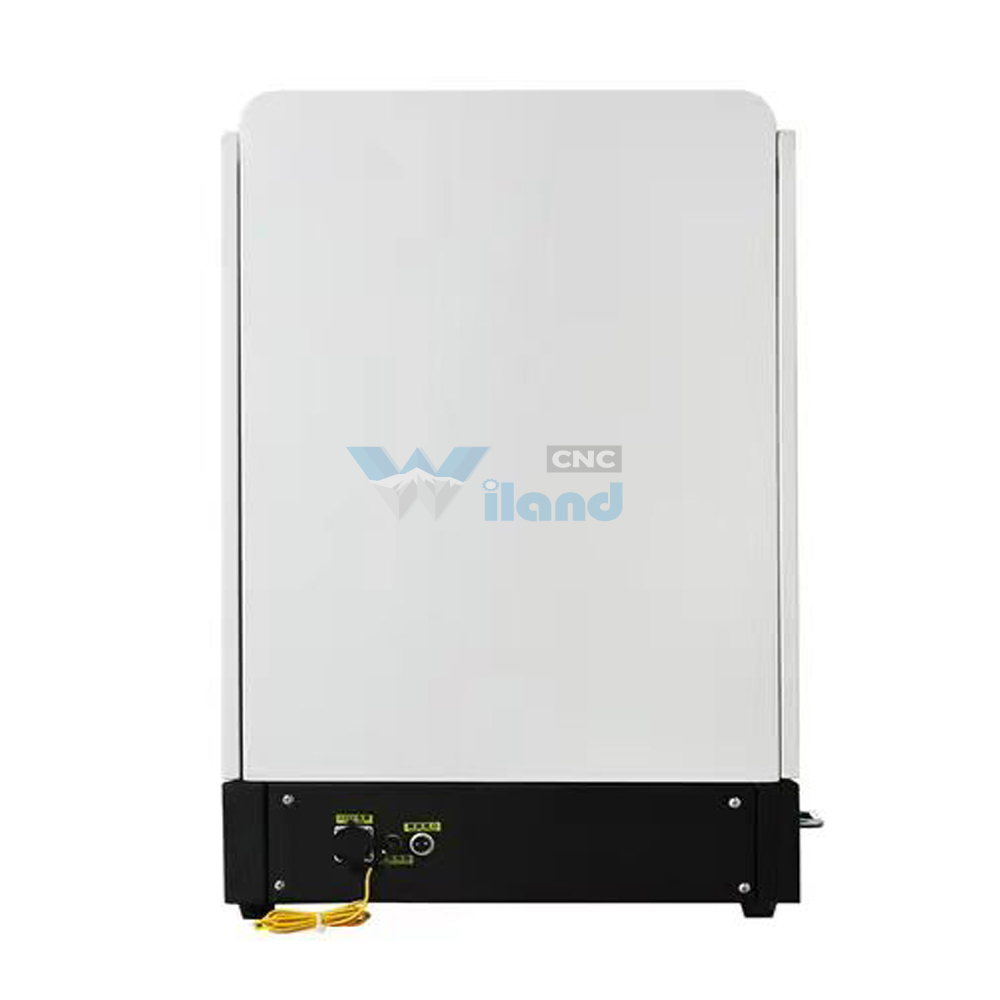

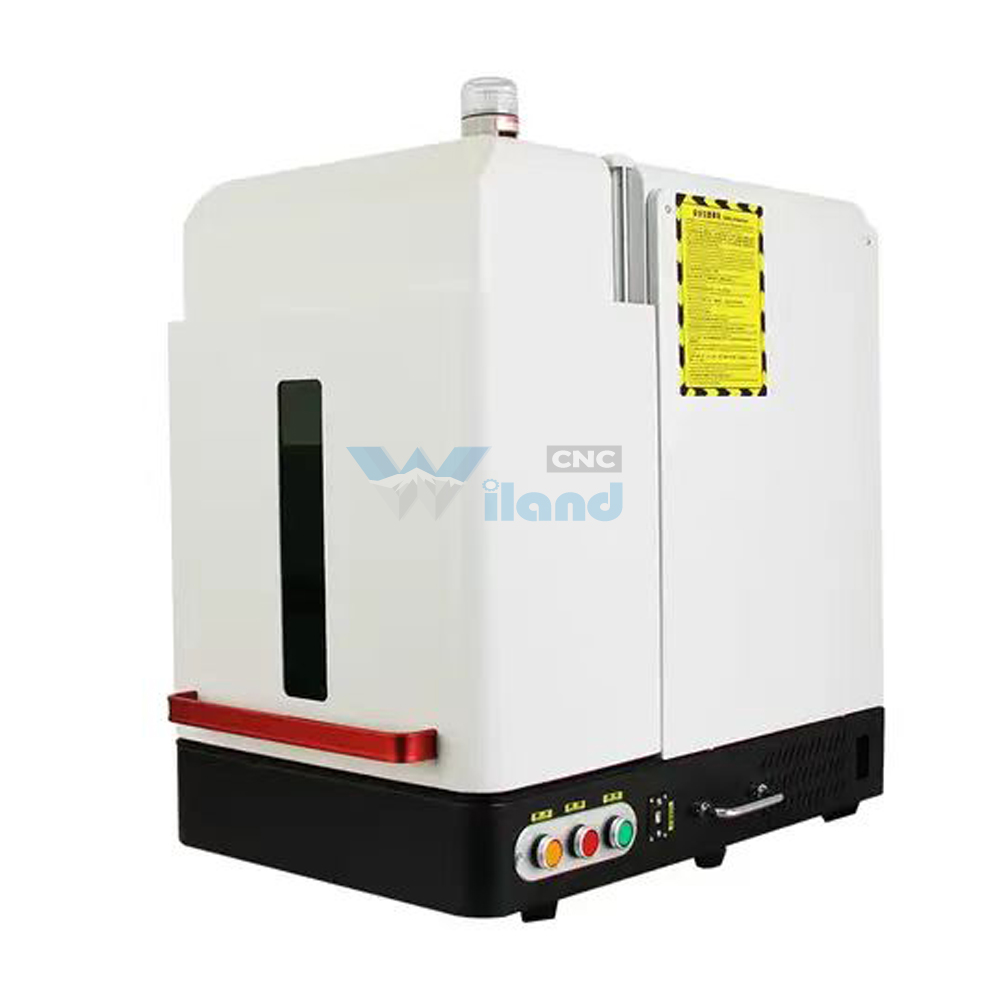

Enclosed Fiber Laser Marking Machine

Model: Wiland-HT

Power: 20W/30W/50W/60W/70W/100W

Laser Source: Raycus/MAX/JPT MOPA

Mainboard : Original BJJCZ

Software: EZCAD

Laser Head: Sino Galvo


CONTACT

PRODUCTS DETAIL

Main Features

1.Fast speed , high stability , laser mode ;

2.Long life , the theoretical working time is 100,000 hours ;

3.High photoelectric conversion efficiency ,low power consumption;

4.Simple operating system , flexible and convenient typesetting , compatible with AUTOCAD , CORELDRAW , PHOTOSHOP and other software output files ;

5.Chinese and English characters , numbers , bar codes , qr codes , graphics is available , support PLT , DXF ,AI,BMP and other file formats , SHX , TTF font library can be direct used ;

6.The system can automatically encode and print the serial number,batch number , date and so on


Application Material

Suitable for all metal materials , such as common metals ( iron , copper , etc.),rare metals(gold , silver , platinum , titanium ,etc.),metal oxides (alumina ,zirconia ,etc.), special surface treatment (electroplating ,etc.),and is also suitable for various non-metallic materials , such as ABS ,ink , nylon , PVC ,epoxy resin and so on .


Technical Parameters


Laser SourceFiber laser Raycus/MAX/JPT
Laser Power20W/30W/50W/60W /100W
Wave length of laser1064nm
Marking scope110*110mm/150*150mm/200*200mm/300*300mm
Laser HeadHigh speed sino galvo scanning head
The minimum focus facula diameter20μm
Minimal character0.01mm
PositioningDouble red dot
Vertical shaft lifting height550mm/700mm
Control systemOriginal EzCad controller with USB port( 3 axis)
Marking depth0.01-5mm( depends on different materials)
Marking line width0.01-0.1mm
Marking speed≤8000mm/s
Laser repetition frequency20kHz~80kHz
GalvanometerHigh speed digital galvanometer (SINO-GALVO, SG2206)
Filed lensScanning lens( Wavelength brand, F-THETA)
Cooling methodAir Cooling
Power supplyAC 220V/110V, 50/60Hz, single phase
Support formatPLT, BMP, DXF, JPG, TIF, AI etc
Process MaterialAll kinds of metal and part of non-metal materials( opque acrylic/plastic)
CertificateCE/FDA
